Mini Wood Stove Shingled Roof Exit Kit
Choose this Small Wood Stove for Cabins Shingled Roof Exit Kit, model CB-6001-SR. It ensures reliable and safe smoke evacuation while effectively protecting your roof. Easy to install, it offers a choice between a 24-inch flue or two 12-inch flues based on your needs.
Designed for non-certified installations, it is perfectly suited for shingled roofs and supports slopes up to 45 degrees. You benefit from a flexible and durable solution.
Configuration Options
- Option 1: One 24-inch (61 cm) insulated flue for taller installations.

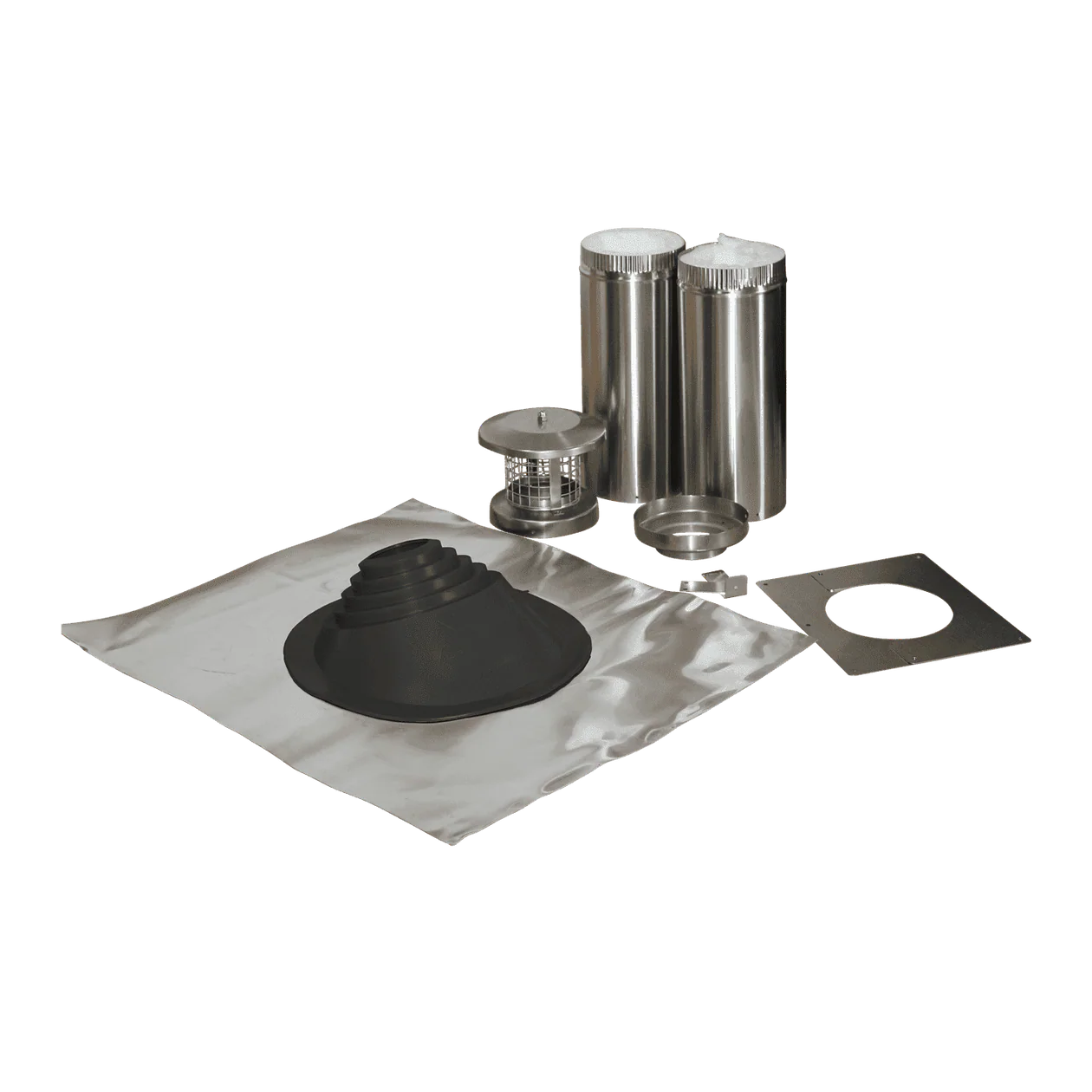

- Option 2: Two 12-inch (30.5 cm) insulated flues for a lower profile.
- The two-flue version allows exterior disassembly, convenient for travel.
- Use the CB-406F30 flexible rubber cap to seal the opening during travel.
Included Components

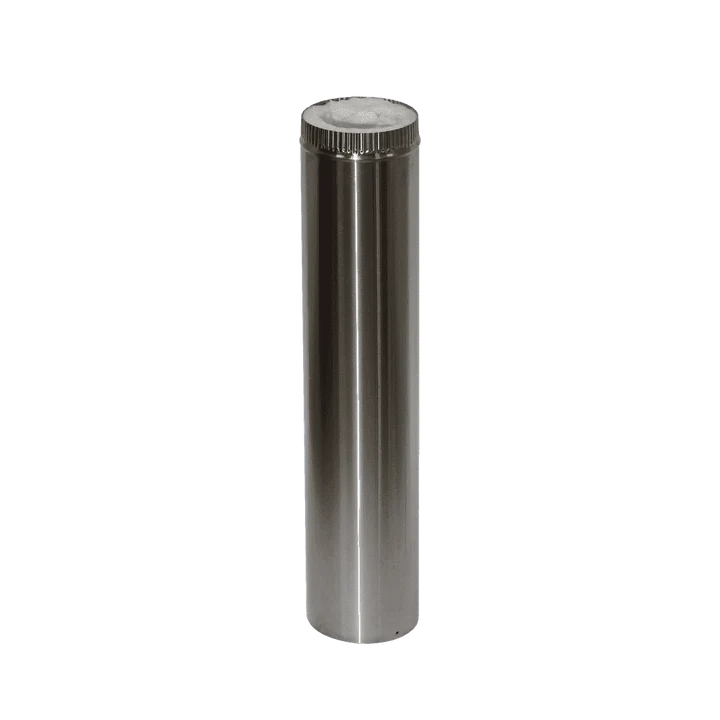

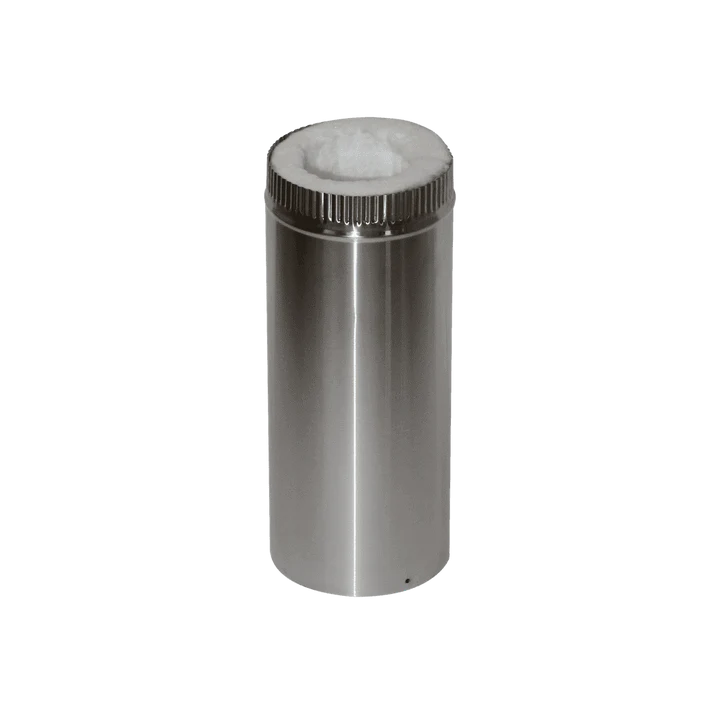

- 5-inch insulated flue: Stainless steel with ceramic wool insulation (CB-5012-SS or CB-5024-SS).

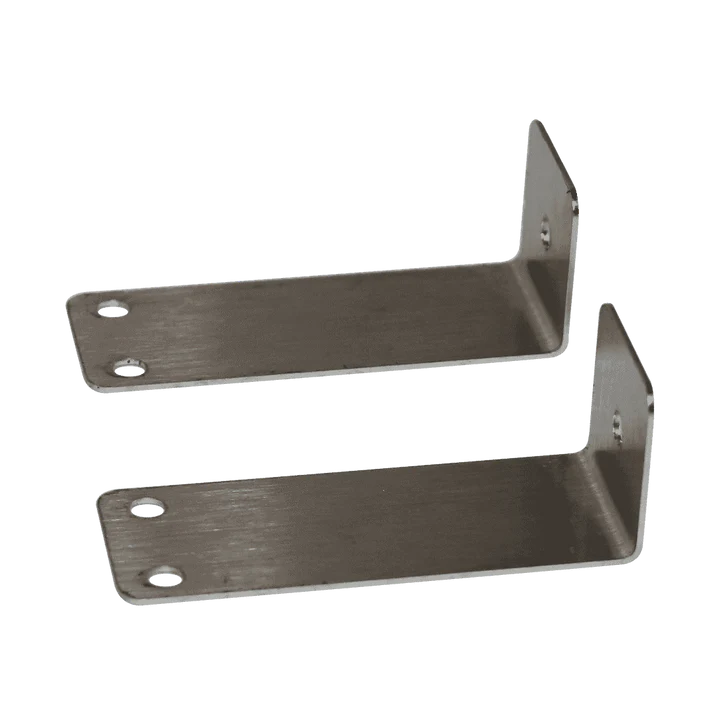

- Supports: CB-3027-SS to keep the flue centered in the opening.

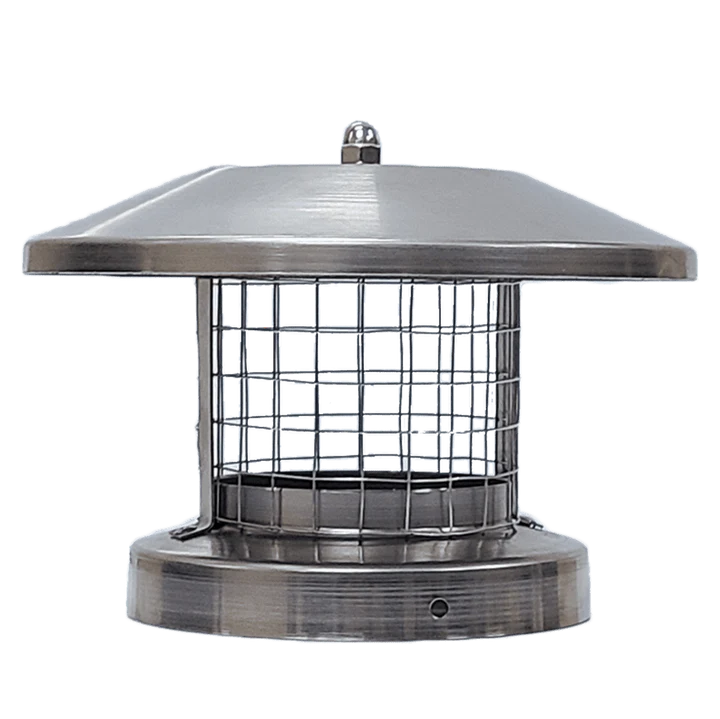

- Rain cap: CB-5028-SS stainless steel, waterproof and spark-resistant.

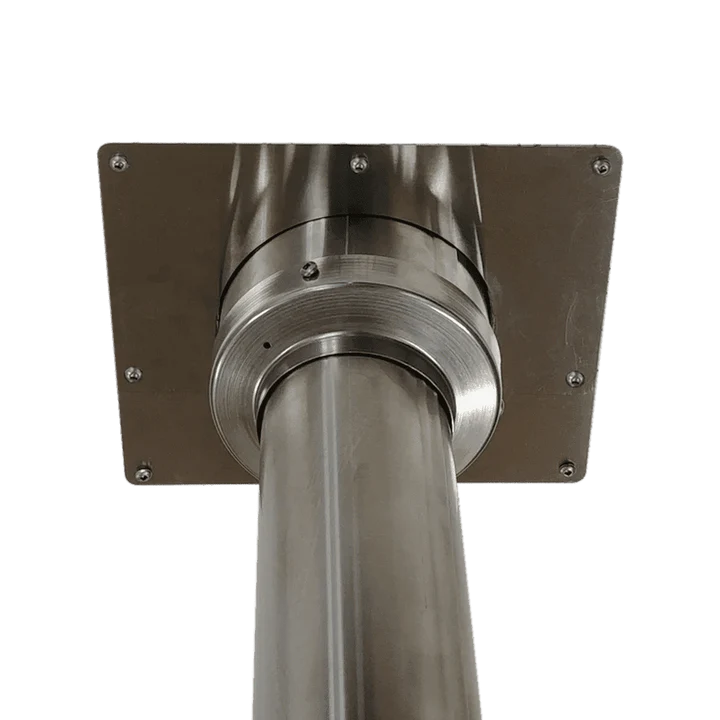

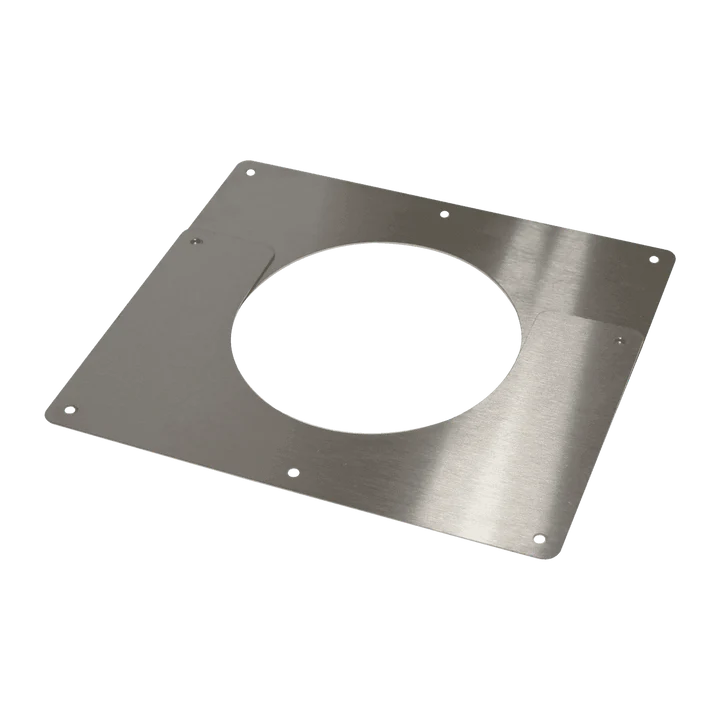

- Finish plate: CB-5029-SS, 23 cm, for clean interior gap coverage.

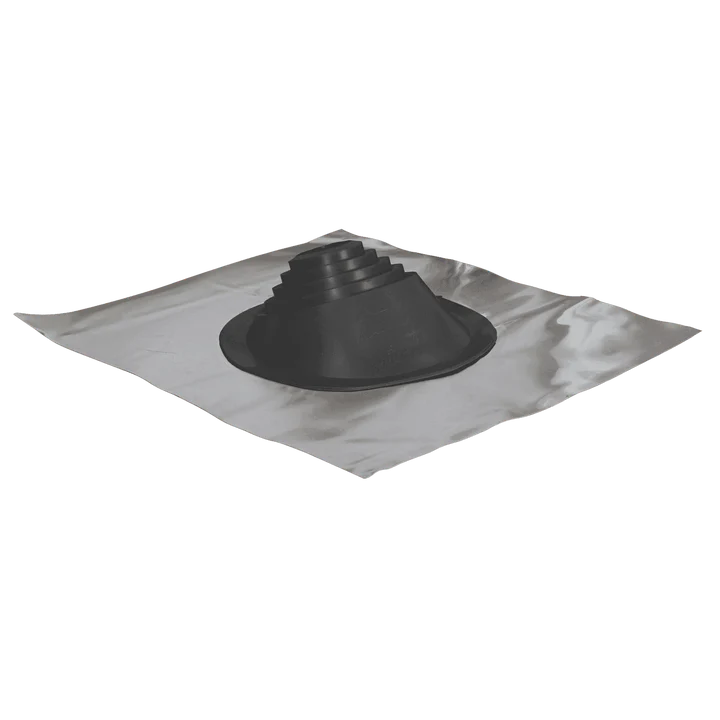

- EPDM rubber boot: 50.8 cm x 61 cm for a watertight seal.

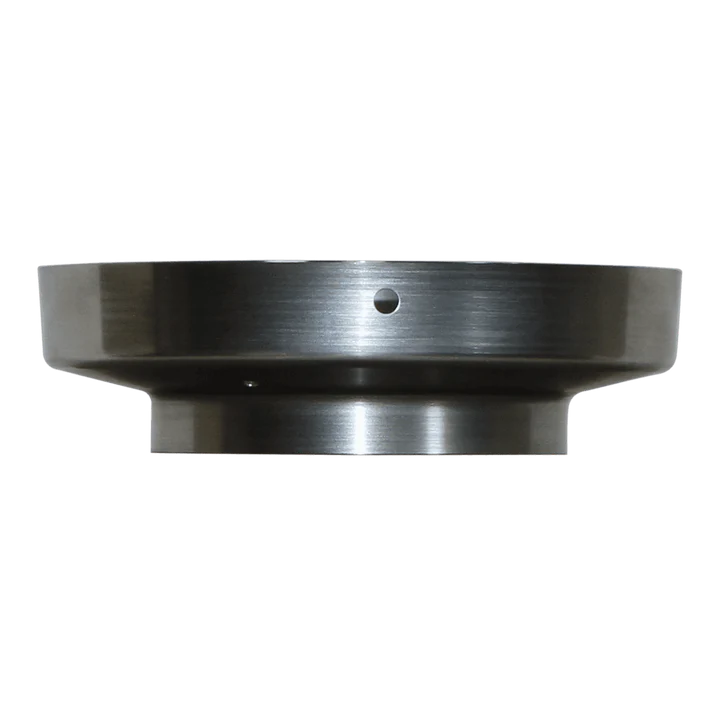

- 3-to-5-inch adapter: CB-3050-SS, 12.7 cm wide, for flue transition.
Materials and Dimensions
- 5-inch flue: 12.7 cm diameter, height options (24" or 2x12").
- Rain cap: 13.3 cm high, 15 cm top plate, 12.7 cm base.
- Finish plate: 23 cm wide, adjustable height from 20.3 to 26 cm (up to 45°).
- Supports: 2.5 cm wide, 5 cm long.
- Boot: 50.8 cm x 61 cm base.
- Adapter: 12.7 cm wide, 3.8 cm high.

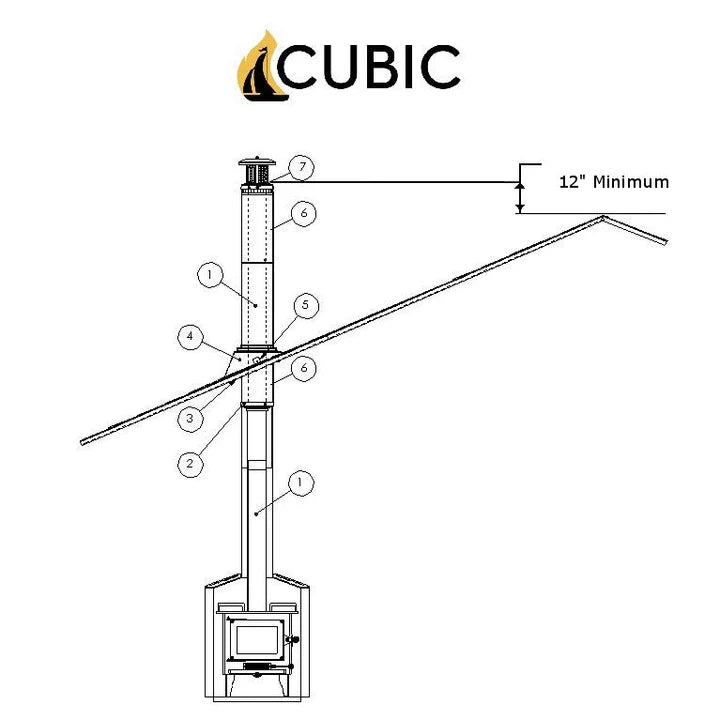

Installation and Compatibility

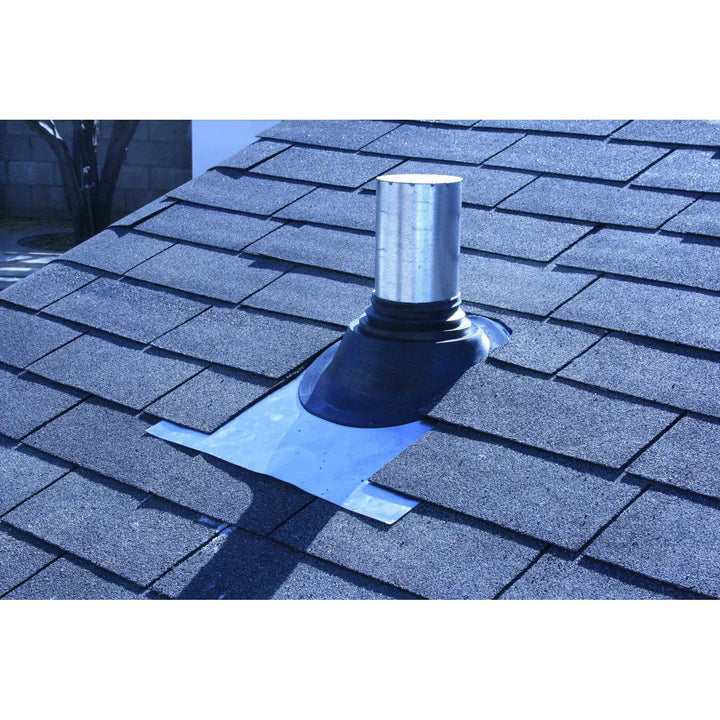

- Compatible with shingled roofs, up to a 45-degree slope.
- 3-inch flue (not included) passes inside the 5-inch insulated flue.
- Begin installation 5 cm below the ceiling and extend the flue 30.5 cm above the roof.
- Add extra sections if height exceeds 61 cm.
- Use a support for exterior sections longer than 61 cm.
- The 3-inch flue must extend 30.5 cm above the roof’s highest point.
Included Hardware
- 24-inch option: 2 self-drilling screws 0.47 cm x 2.54 cm and 6 screws 0.31 cm x 1.27 cm.
- 2x12-inch option: 2 screws 0.47 cm x 2.54 cm and 9 screws 0.31 cm x 1.27 cm.
- Not included: Screws for plate, boot, and supports; high-temperature silicone for sealing.
Safety and Maintenance
- Designed for non-certified installations only.
- Insulated flue reduces surface heat and creosote buildup.
- Maintains gas heat for improved efficiency.
- Ensures a watertight seal with the EPDM boot.
- Regular cleaning recommended to prevent deposit buildup.
Product Description
This Small Wood Stove for Cabins Shingled Roof Exit Kit is a simple and complete solution. Compact and efficient, it includes all necessary components for safe smoke evacuation. It also protects against moisture and sparks.
Benefits for Vans and Tiny Houses
Install this kit on a converted van for a reliable roof exit. The 2x12-inch option reduces exterior height, ideal for worry-free travel. It also maintains perfect sealing during movement.
Use in Off-Grid Cabins
This Small Wood Stove for Cabins off-grid kit also suits cabins with shingled roofs. With high-temperature silicone, it ensures effective protection against weather. Add an extra support if needed and enjoy autonomous heating.
