Tiny House Wood Heater <br>Grizzly Brass <br>400 sq ft

Tiny House Wood Heater: Efficient Heat for Small Spaces

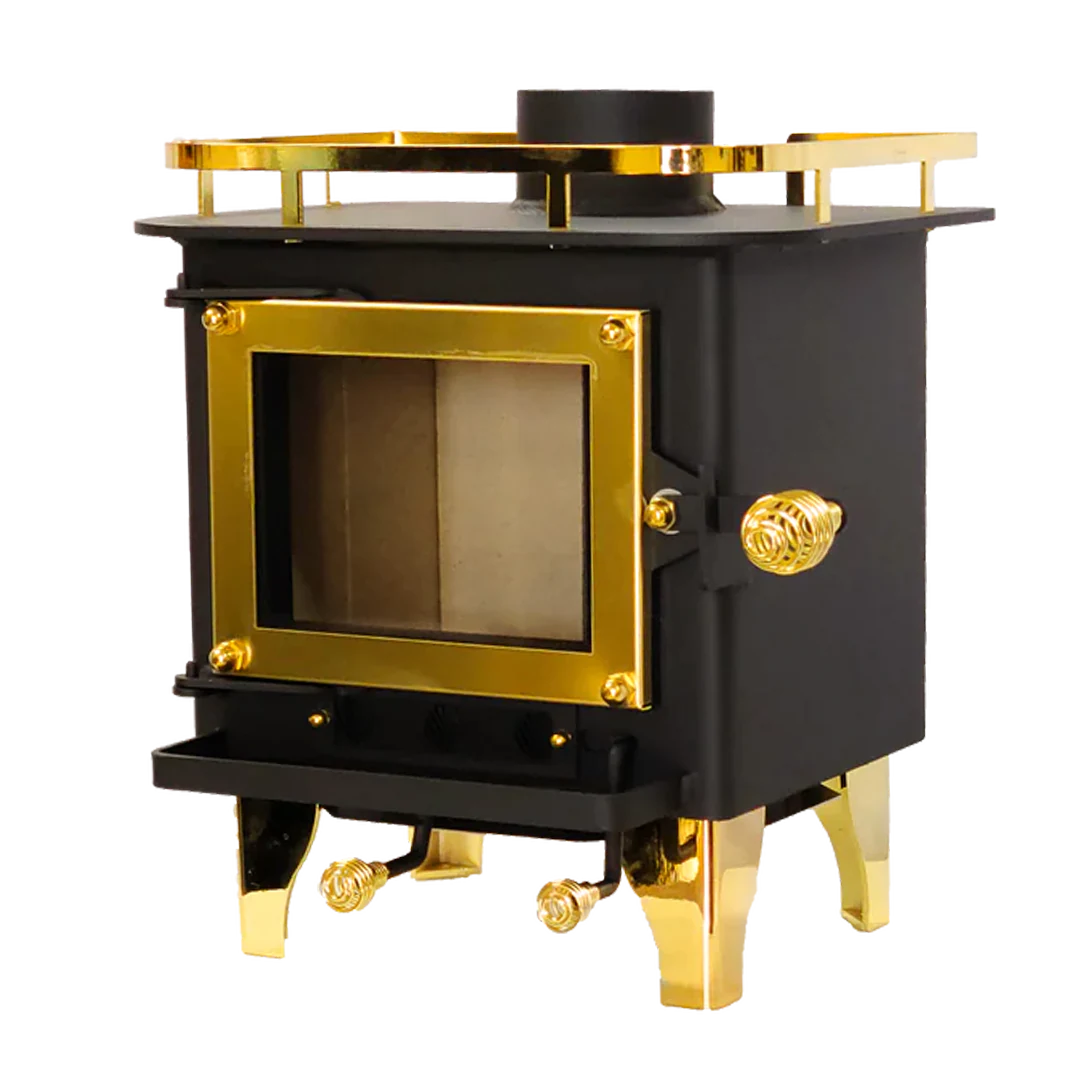

Discover this tiny house wood heater, Grizzly Gold model. It heats up to 37.2 m². Designed for small spaces, it eliminates humidity. Plus, it warms comfortably. Thus, create a charming focal point.

Perfect for mobile tiny houses, it suits boats or cabins. Moreover, performs in spring and fall. For winter, prioritize low ceilings. Therefore, adapt to your needs.

Dimensions and Weight

• Weight: only 18.14 kg (40 lb) — easy to move and install.
• Width: 33.0 cm.
• Height: 38.1 cm.
• Depth: 30.5 cm.
• Cooking area: 16.5 cm between the flue and the end (33.0 cm without rail).

Firebox Capacity of the tiny house wood heater

• Depth: 17.1 cm.
• Interior width: 18.7 cm.
• Interior height: 19.1 cm.

Recommended Fuel

• Use well-seasoned hardwood (oak, maple, birch, ash).
• Compressed logs without wax or glue are ideal.
• Avoid softwood, which burns quickly and produces more creosote.
• Maintain wood moisture below 20%.
• Do not burn pellets, or treated or painted wood.
• Maximum length: 17.1 cm for good air circulation (slightly longer possible).

Power and Efficiency of the tiny house wood heater

• Power: from 8,000 to 18,000 BTU (2.3 to 5.2 kWh).
• Heats a surface up to 37.2 m² (400 ft²).
• Average burn time: 1 to 3 hours, sometimes up to 6 hours with good dry wood.

Construction Materials

• Top plate in 4.8 mm steel.
• Body in 3.2 mm steel.
• Insulates with 12.7 mm vermiculite.
• 4.8 mm self-cleaning Robax glass.
• Brass-plated coil handles.

Air Control and Combustion

• Adjustable primary air under the door to control the fire.
• Secondary combustion activated via a perforated tube.
• Improves energy efficiency and reduces smoke.
• Manual ignition, simple and quick.

Safety Clearances

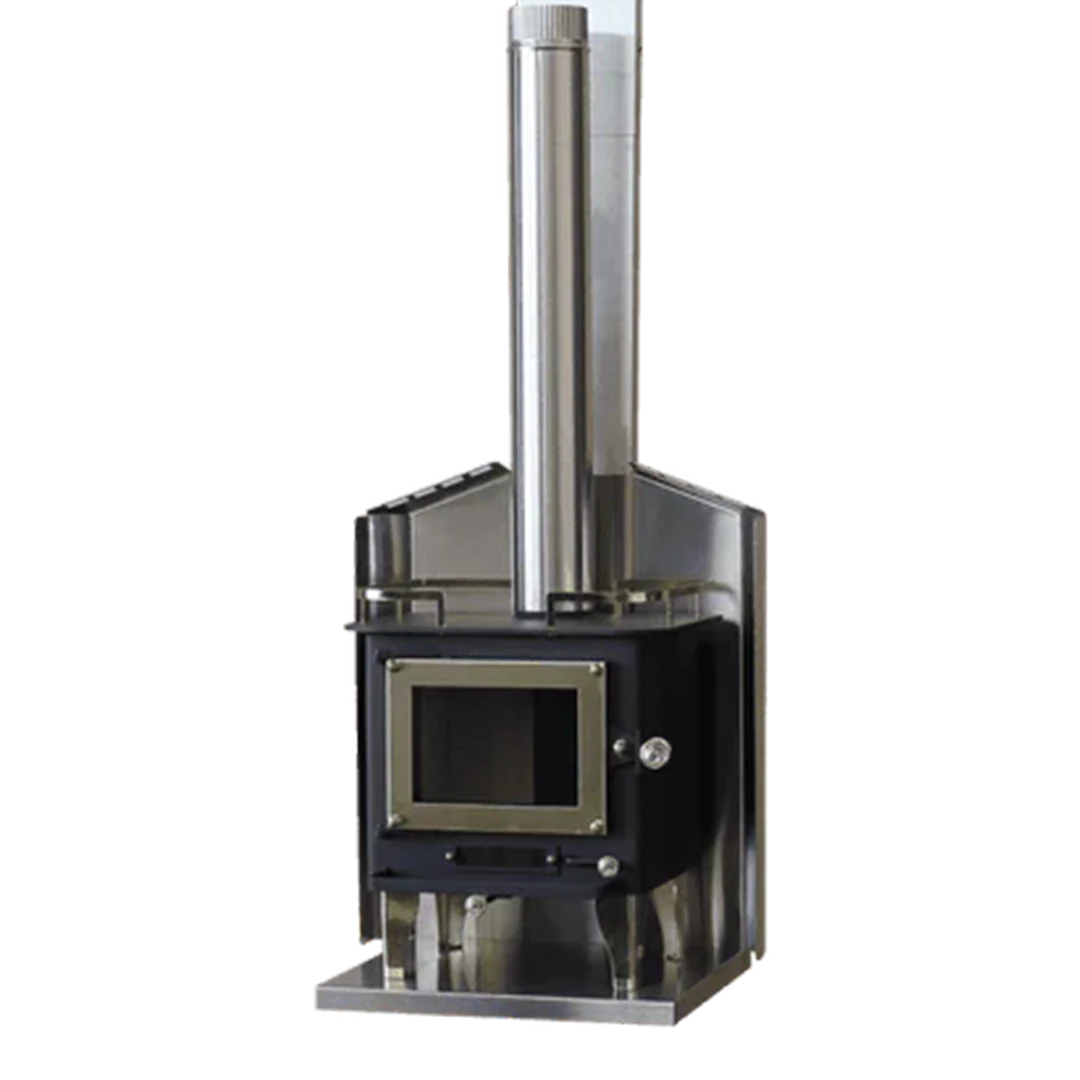

• Sides: 35.6 cm without shielding, 7.6 cm with shielding.
• Front: 40.6 cm minimum.
• Vertical: 101.6 cm.
• Always protect the floor with a fireproof pad.

Installation and Ventilation

• Important: the complete chimney kit (not included) is necessary: 7.6 cm (3") double-wall flue, insulated 12.7 cm (5") outlet, and roof or wall exit kit.
• Provide fresh air intake (slightly open window or dedicated air inlet).
• Mounting options: wall, floor or custom fireproof configuration.
• Installation of legs required for setup.

Maintenance and Safety of the tiny house wood heater

• Clean the flues and firebox regularly.
• The self-cleaning system keeps the glass clear.
• Manual ash removal (no ash pan included).
• Replacement parts available: glass (CB-1299), baffles (CB-1205), bricks (CB-8000), bottom brick (CB-8001).
• 3-month warranty on the glass.
• Note: this stove has no EPA/CSA certification — reserved for off-grid use.

Additional Features

• First of all, it is Compact and easy to use.
• Eco-friendly: emits very little smoke.
• Moreover, it is safer than propane or diesel.
• Effectively reduces humidity in small spaces.
• Available in black or brass finish.
• Optional accessories: Ecofan, water heater, mini roaster, tool kit.

Compatibility with Vans

Adapt this small wood stove for vans to converted vans. Its reduced size makes installation easy. Plus, its light weight helps in a compact interior. Thus, bring autonomous heat and cooking. However, respect safety clearances. Use appropriate shielding.

Use of the tiny house wood heater in Tiny Houses

In a tiny house on wheels, this stove heats effectively in mid-season. It can also be used as a cooking surface by removing the top rail. Plus, it helps reduce interior humidity for increased comfort.

Advantages for Off-Grid Cabins

In an isolated cabin, this tiny house wood heater off-grid provides sustainable heat without electricity. Use local dry wood to maximize its efficiency and enjoy total autonomy. Finally, Add accessories like a water heater or Ecofan for optimal comfort.

Related Products

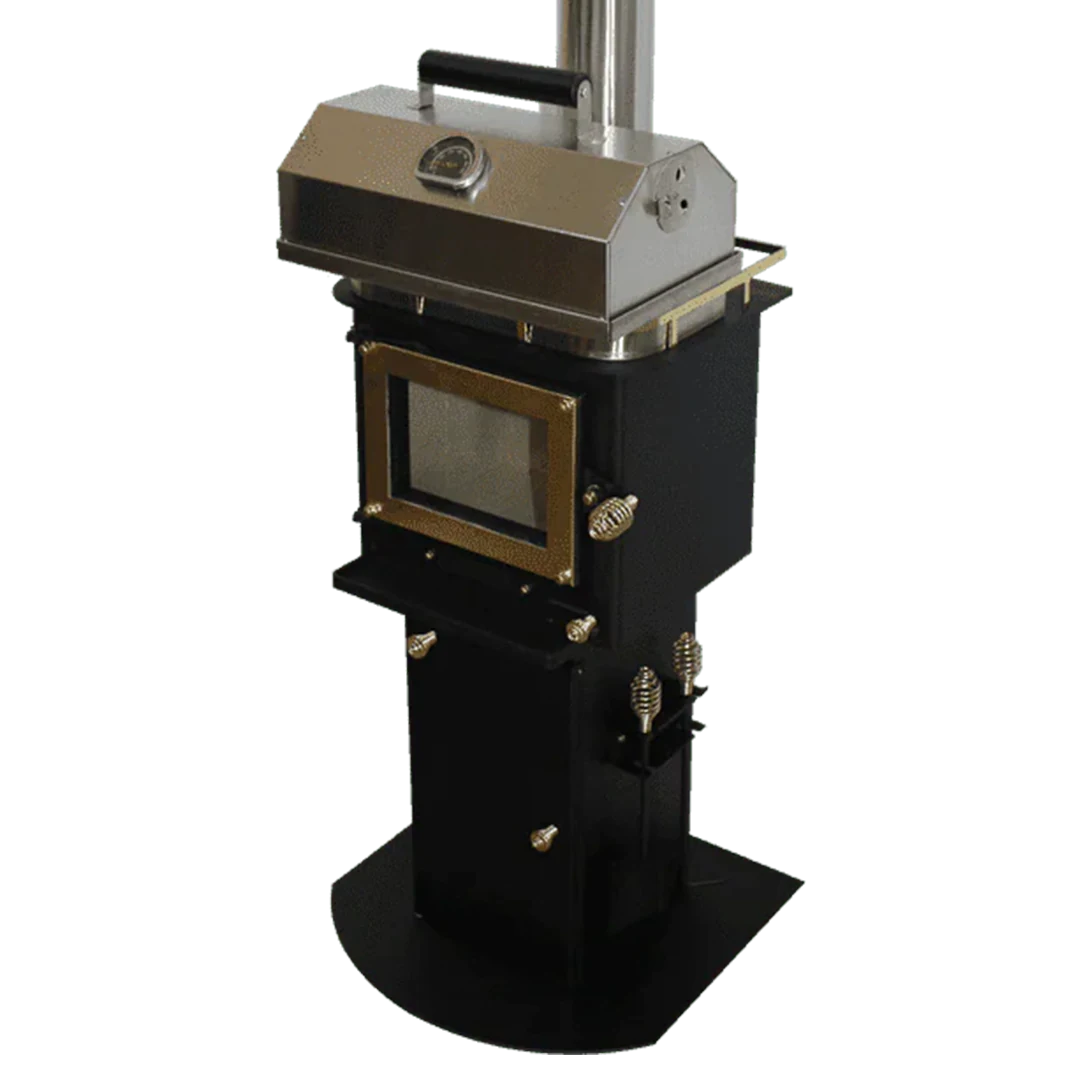

Complete your installation with mounts and shields for secure mounting. Add a roaster for cooking, or a water heater for hot water. A tool kit is also available to simplify maintenance.
