Mini Wood Stove 5" Stainless Insulated Pipe 24" Long

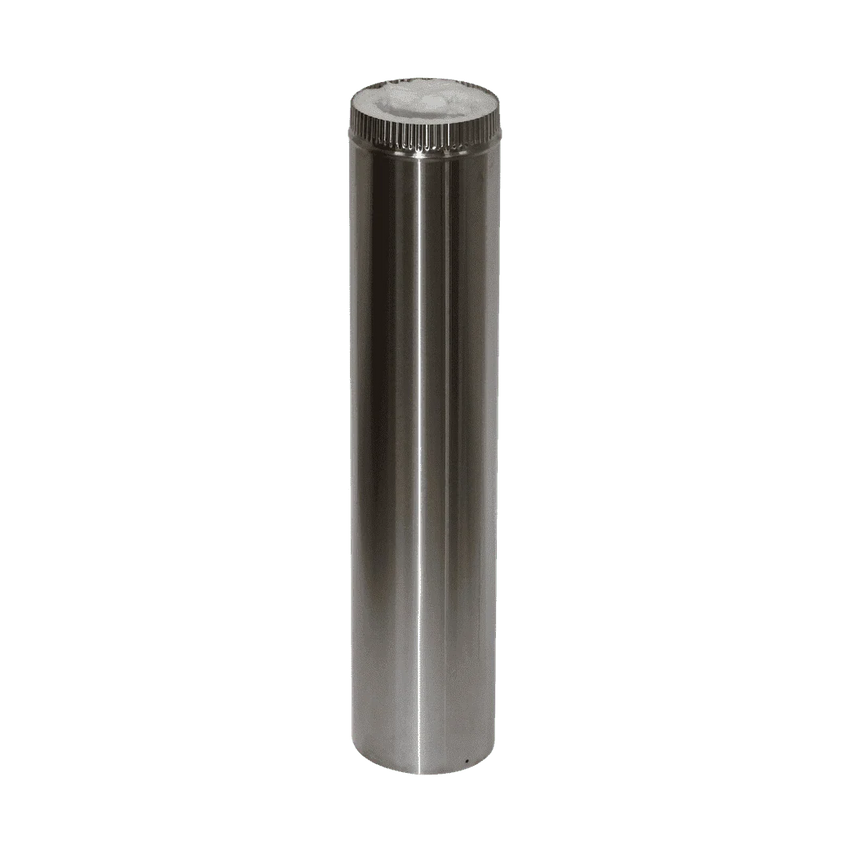

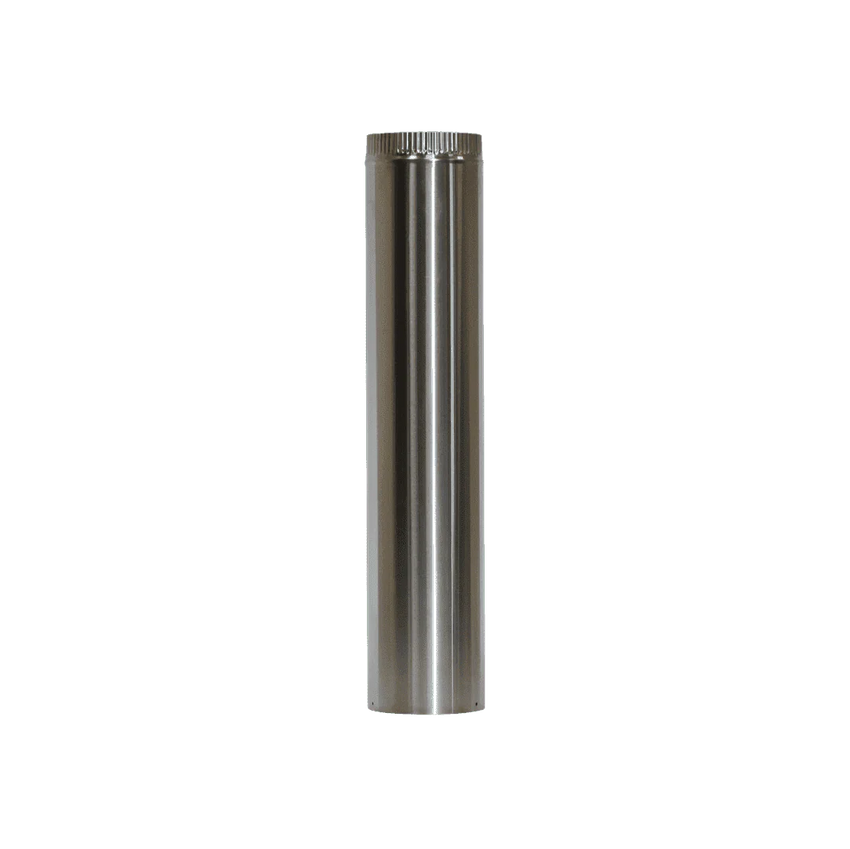

Discover this Small Wood Stove for Cabins 5" Stainless Insulated Pipe, model CB-5024-SS. Designed to effectively protect your installation, it maintains gas temperature and improves stove draft. Thus, you enjoy safer and more efficient combustion, suitable for various roof types.
Ideal for non-certified installations, this flue is perfect for Cub and Grizzly stoves. Its modular lengths allow easy customization of your exhaust system.
Configuration Options
- Option 1: One 24-inch (61 cm) flue, usable length 58.42 cm.
- Option 2: Two flues, usable length 118.11 cm (3.87 feet).
- Option 3: Three flues, usable length 177.16 cm (5.81 feet).
- Option 4: Four flues, usable length 236.22 cm (7.75 feet).
- Option 5: Five flues, usable length 295.27 cm (9.68 feet).

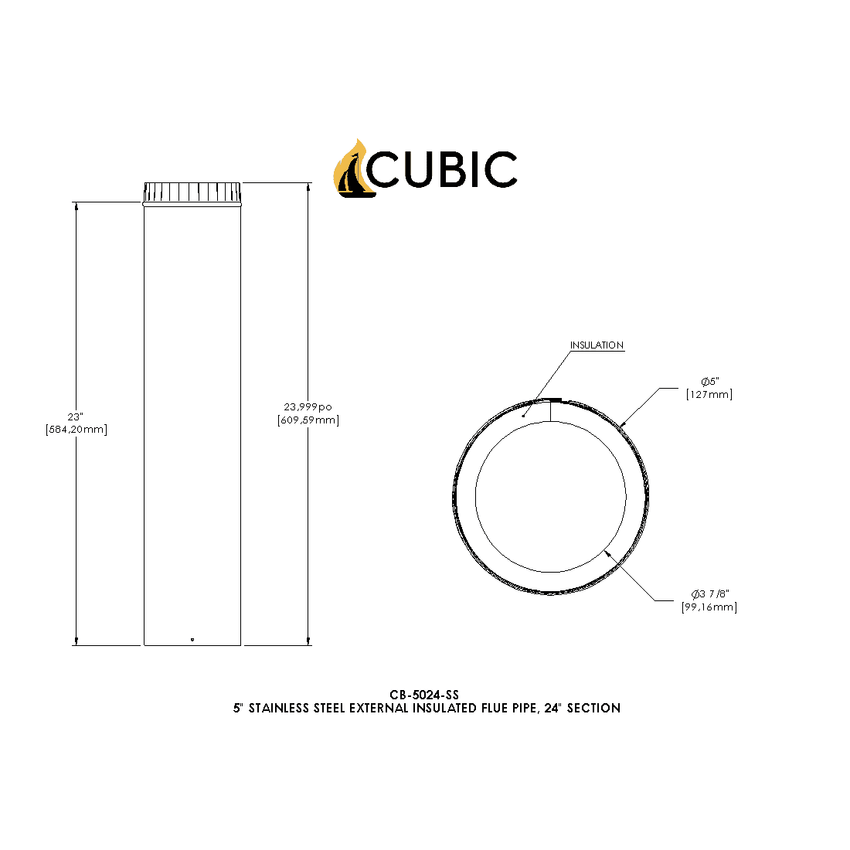

Dimensions
- Total Length: 61 cm (24 inches) per section.
- Usable Length: 58.42 cm per section (1.9 cm lost at connection).
- Outer Diameter: 12.7 cm (5 inches).
Materials
- Made from stainless steel for enhanced durability.

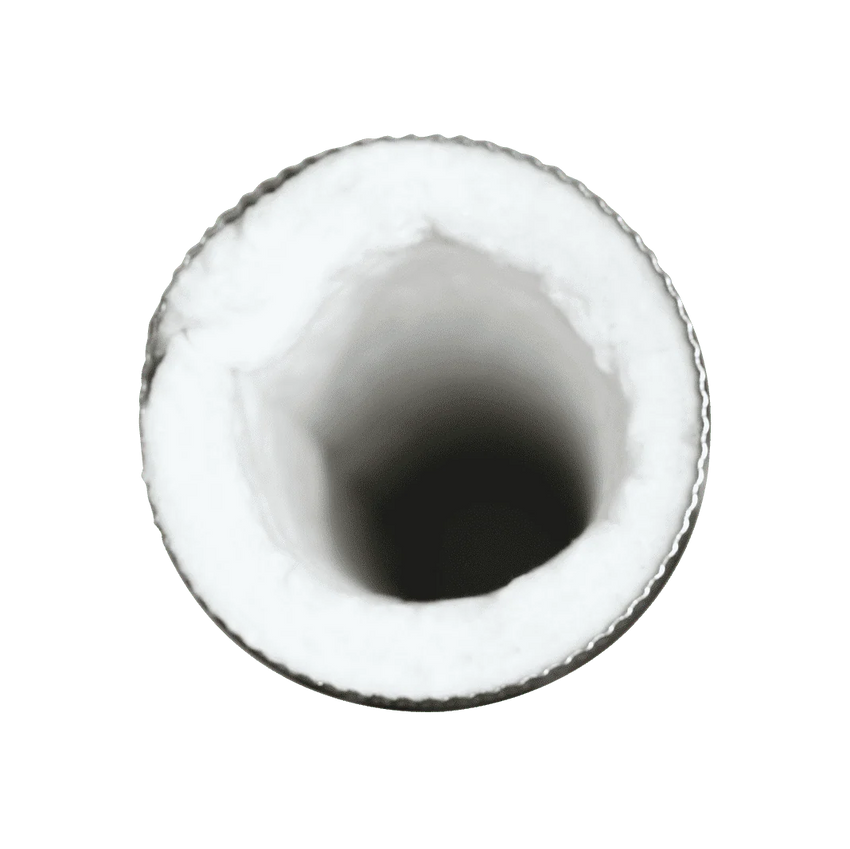

- 2.54 cm thick ceramic wool insulation.
- High resistance to corrosion and extreme temperatures.

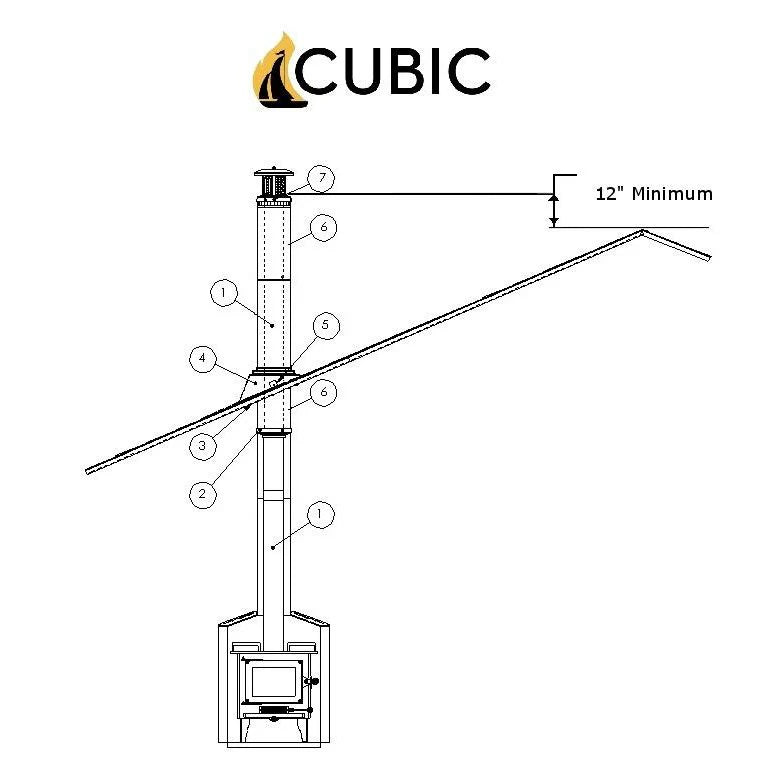

Installation for Non-Certified Installations
- Begin installation 5 cm below the ceiling and extend to 30.5 cm above the roof.
- 3-inch flue (not included) fits inside the 5-inch flue.
- Maintain a 2.54 cm air gap around the flue.
- Use a 17.8 cm circular or oval hole for sloped roofs.
- Add a support if the exterior flue exceeds 61 cm.
Compatibility
- Compatible with Cub CB-1000 and Grizzly CB-2000 stoves.
- Use with 3-inch double-wall flue CB-3024-SS (sold separately).
- Reserved for non-certified installations.
Safety and Maintenance
- Reduces surface temperature for enhanced safety.
- Maintains hot gases and minimizes creosote buildup.
- Adjust length with a disc grinder if necessary.
- Clean the 3-inch flue regularly with an appropriate brush.
- Inspect weekly to prevent chimney fire risks.
Additional Features
- Effective insulation to retain combustion gas heat.
- Protects ceiling and roof during pass-through.
- Integrates easily with existing exhaust systems.
- Enhances draft and optimizes stove performance.
Product Description
The Small Wood Stove for Cabins 5" Stainless Insulated Pipe CB-5024-SS ensures a safe and efficient installation. Its stainless steel and ceramic insulation reduce surface heat and boost combustion efficiency. Suitable for flat or sloped roofs, it’s ideal for reliable use.
Benefits for Vans and Tiny Houses
This flue is perfect for a converted van installation. It protects ceilings and roofs, reduces heat risks, and adapts to mobile environments. Enjoy safe and reliable heating on the go.
Use in Off-Grid Cabins
This Small Wood Stove for Cabins off-grid insulated pipe is ideal for isolated cabins. Durable and weather-resistant, it can be extended for taller roofs. Benefit from efficient combustion and autonomous heating.
Related Products
Complete your setup with the 3-inch double-wall flue CB-3024-SS. Add a roof exit kit to secure your entire system.
