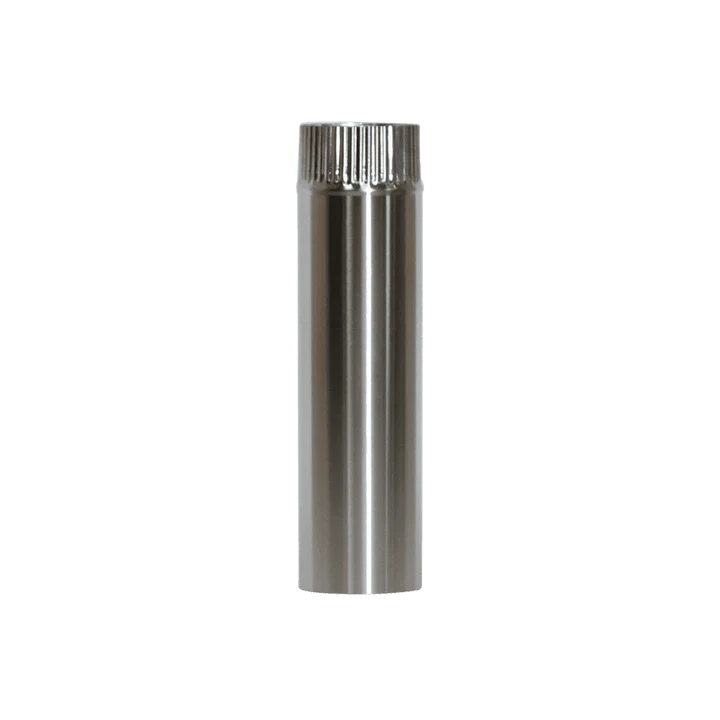

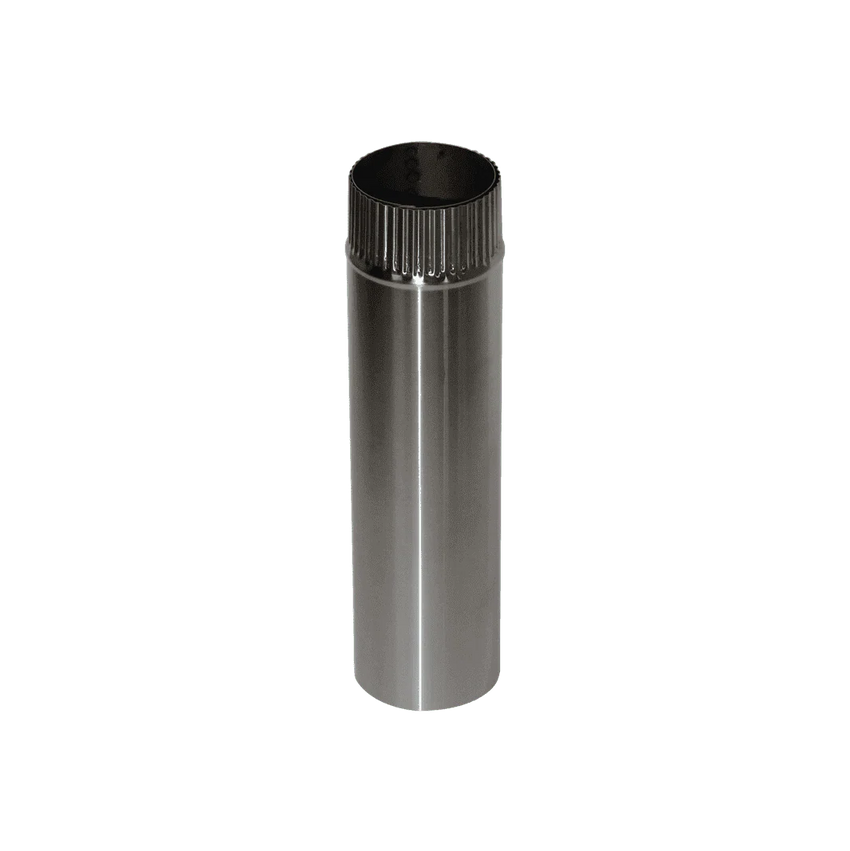

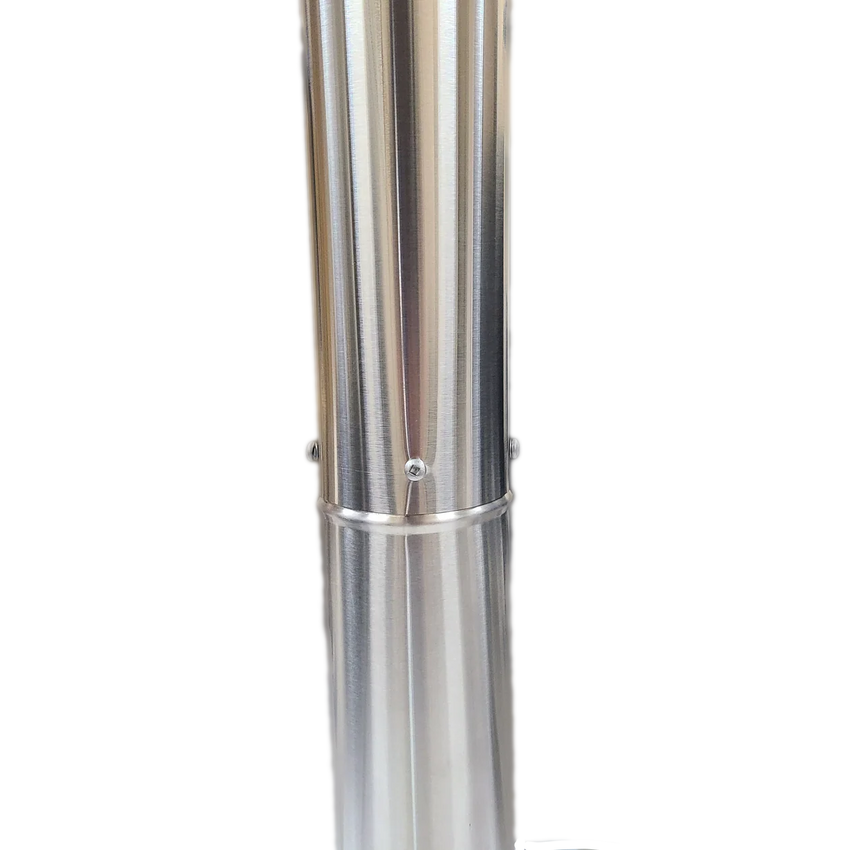

Mini Wood Stove 3" Stainless Double Wall Flue Pipe 12" Chimney
Discover this Small Wood Stove for Cabins 3" Stainless Double Wall Flue Pipe, model CB-3012-SS. Designed for efficient gas evacuation, it enhances draft and optimizes your stove’s performance. Compact and practical, it adapts to various setups for safe combustion.
Ideal for adjusting installation height, it suits approved stoves. Its flexible design allows easy customization of your exhaust system.

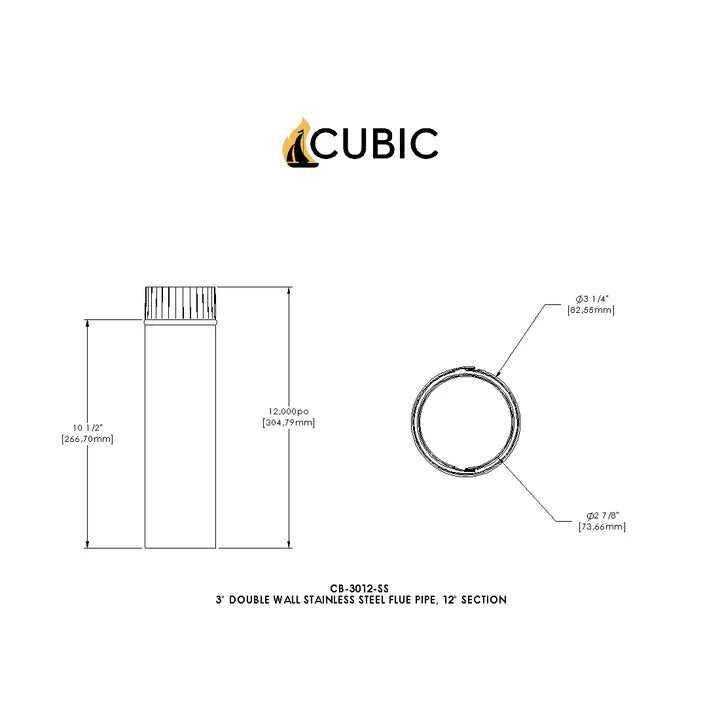

Dimensions
- Total Length: 30.5 cm (12 inches) per section.
- Usable Length: 26.6 cm per section (3.81 cm loss at connection).
- Outer Diameter: 8.25 cm (3.25 inches).
- Inner Diameter: 7.3 cm (2.875 inches).
Materials
- Made from stainless steel inside and out.
- Corrosion-resistant for extended durability.
Installation for Non-Certified Installations

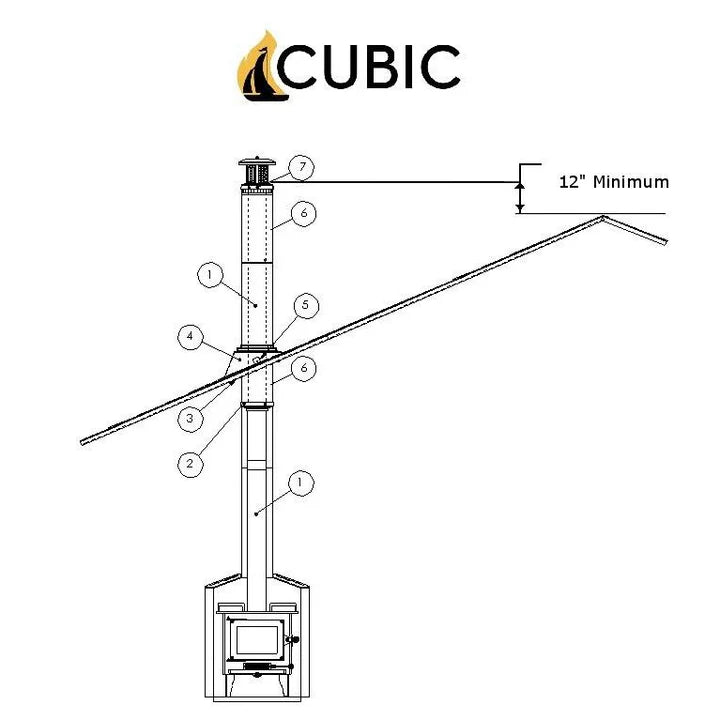

- Extend 3-inch flues to 30.5 cm above the roof.
- Install in vertical exit only, no elbows.
- Pair with a roof exit kit for added safety.
- Secure sections with self-tapping screws.
Installation for Certified Installations
- Connect to a 6-inch UL103 HT/ULC-S629 certified chimney system.
- Use CB-3060 adapter cone for 3-to-6-inch transition.
- Start the 6-inch section just before the ceiling.
Safety and Maintenance
- Shielding mandatory if flue is within 23 cm of walls.
- Reinforce installation with CB-2015/CB-2215 wall supports.
- Never use as a pellet stove flue.
- Clean regularly with a 3-inch brush to limit creosote buildup.
- Inspect flues weekly for optimal safety.
- Adjust length with a disc grinder if necessary.
Additional Features
- Double-wall design for optimal draft.

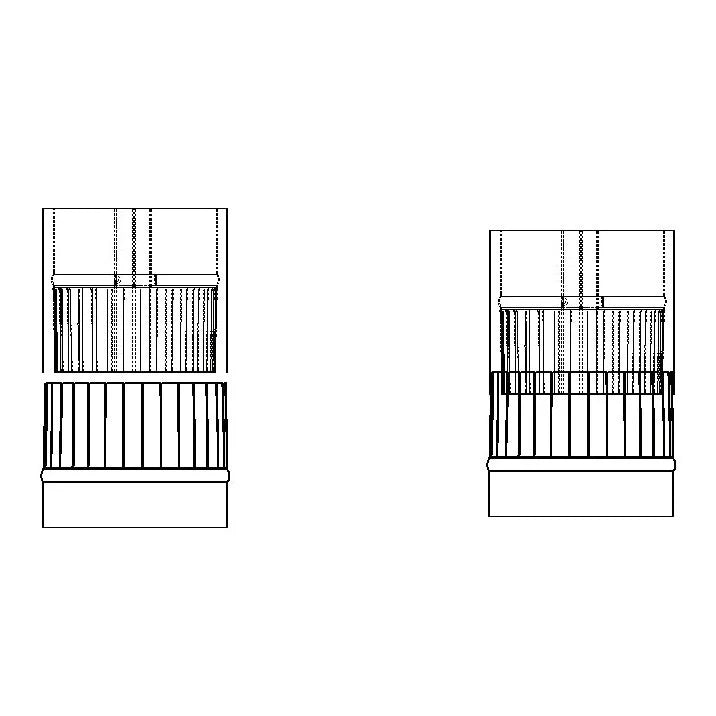

- Male-down connection to prevent creosote leaks.
- Complements 24-inch sections for modular lengths.
- Ensures efficient combustion gas evacuation.
Product Description
The Small Wood Stove for Cabins 3" Stainless Double Wall Flue Pipe CB-3012-SS combines compactness and performance. Its stainless steel construction ensures durability and enhances combustion. It integrates easily with 24-inch sections to adjust to your installation needs.
Benefits for Vans and Tiny Houses
Install this flue in a converted van for secure evacuation. Adjust the height to your constraints and benefit from a vibration-resistant solution suited for mobile environments. Heat comfortably during your travels.
Use in Off-Grid Cabins
This Small Wood Stove for Cabins off-grid flue pipe is also ideal for isolated cabins. Weather-resistant, it can be combined with other sections for taller roofs. Enjoy efficient combustion and autonomous heating.
Related Products
Complete your setup with a metal or shingled roof exit kit. Consider adding wall supports to secure and reinforce your system.
