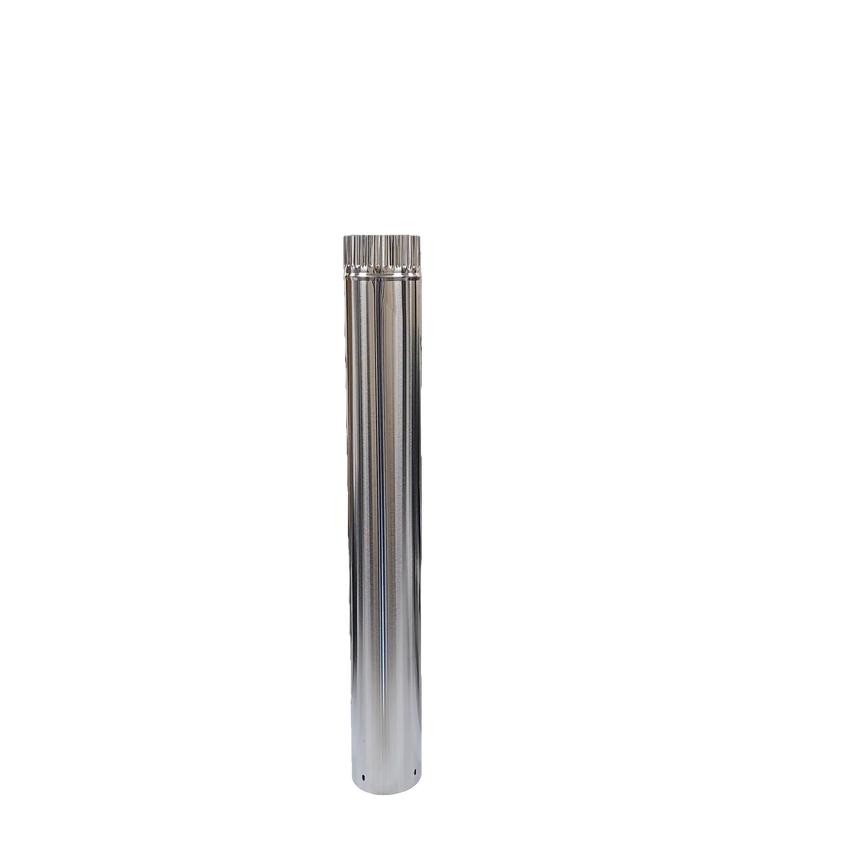

Mini Wood Stove Chimney 3" Stainless Double Wall Flue Pipe 24" Long
Choose this Small Wood Stove for Cabins 3" Stainless Double Wall Flue Pipe, model CB-3024-SS. Designed for efficient gas evacuation, it improves draft and optimizes your stove’s performance. Easy to adapt, it fits various environments for safe combustion.
Compatible with certified or non-certified installations, this stainless steel flue suits approved stoves. Its modular length allows easy customization of your exhaust system.
Configuration Options

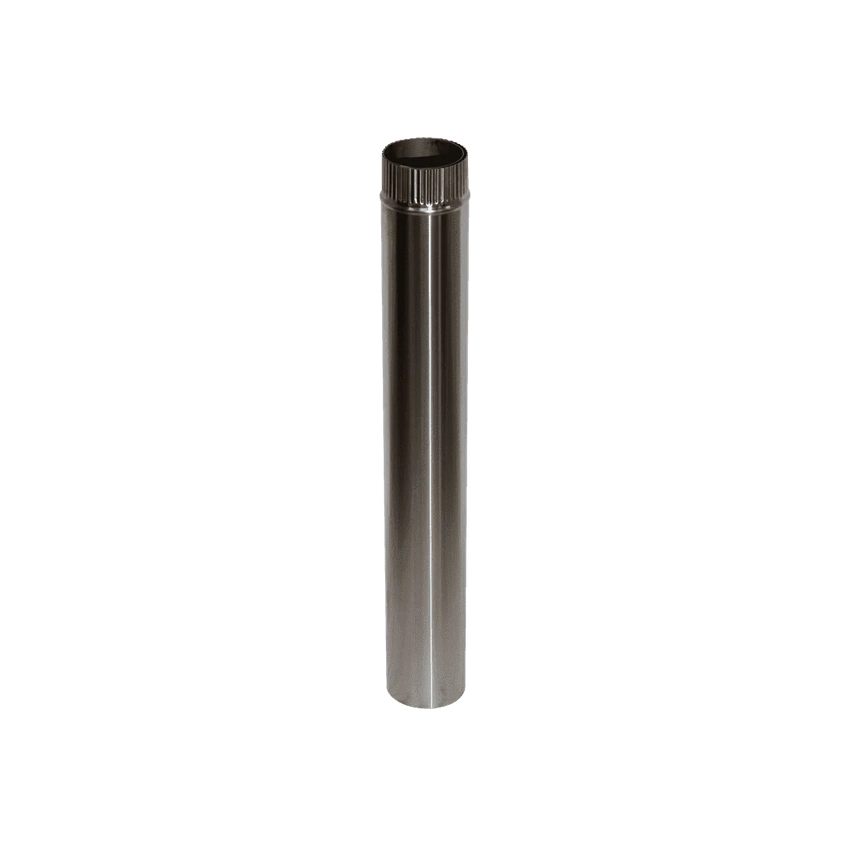

- Kit of 1: One 24-inch (61 cm) flue, usable length 22 1/2" (57.15 cm).

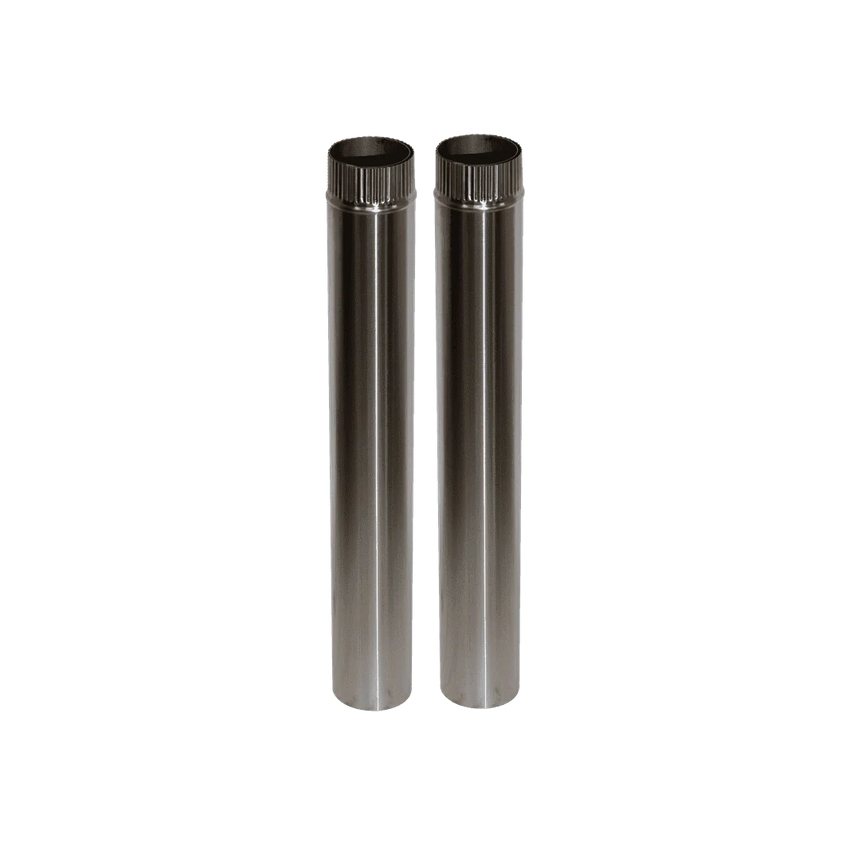

- Kit of 2: Two flues, 48 inches (122 cm), usable length 45" (114.30 cm).

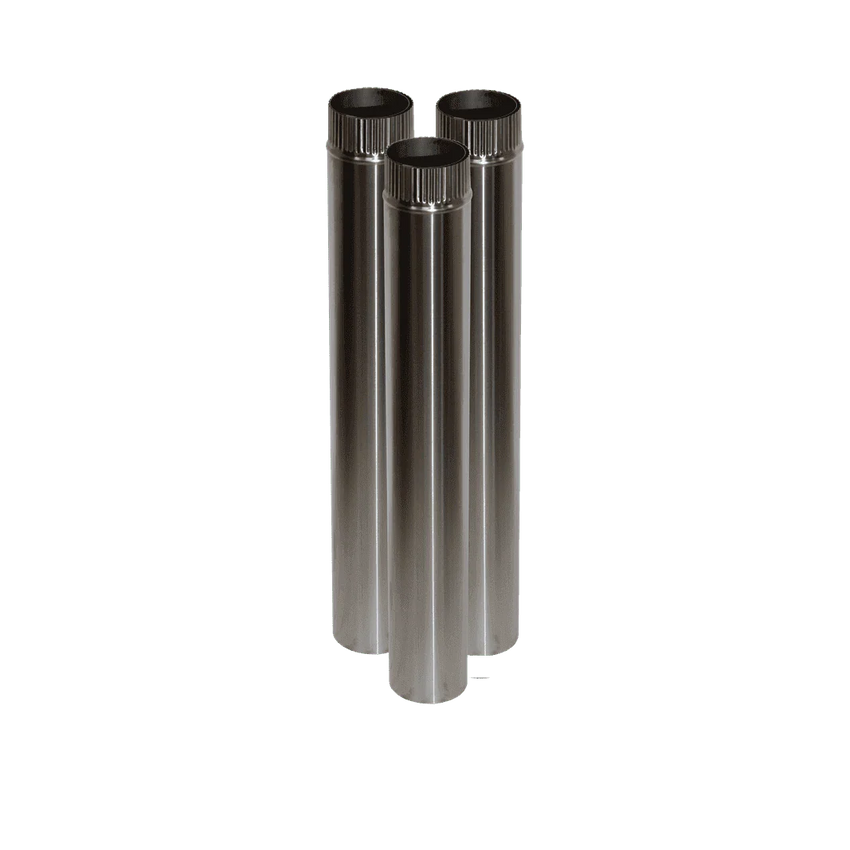

- Kit of 3: Three flues, 72 inches (183 cm), usable length 67 1/2" (171.45 cm).

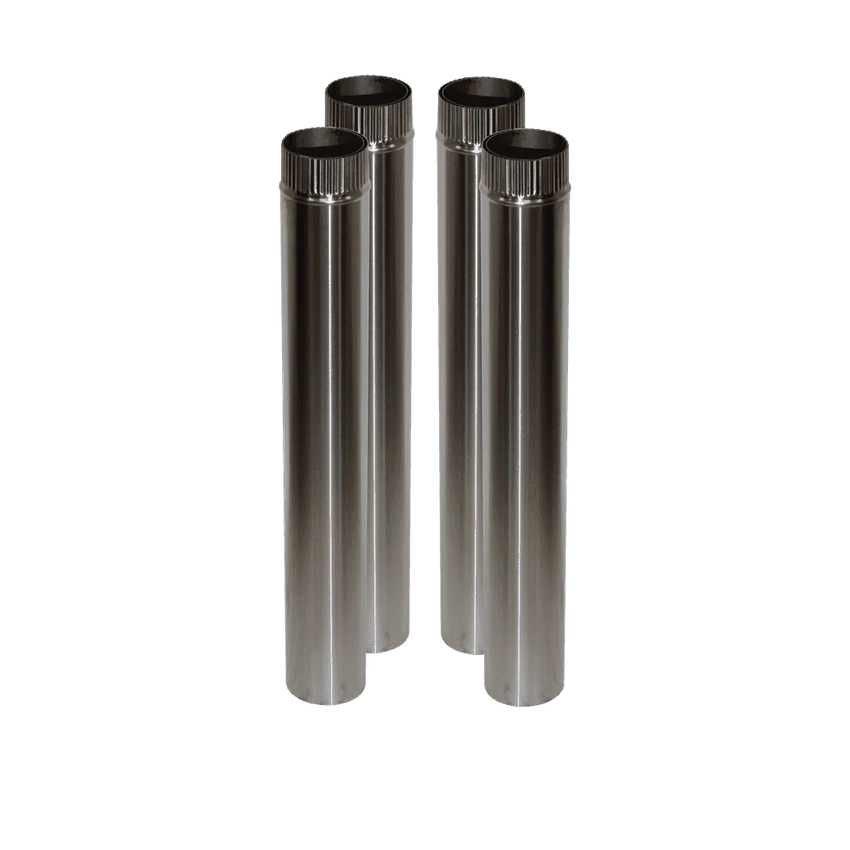

- Kit of 4: Four flues, 96 inches (244 cm), usable length 90" (228.60 cm).

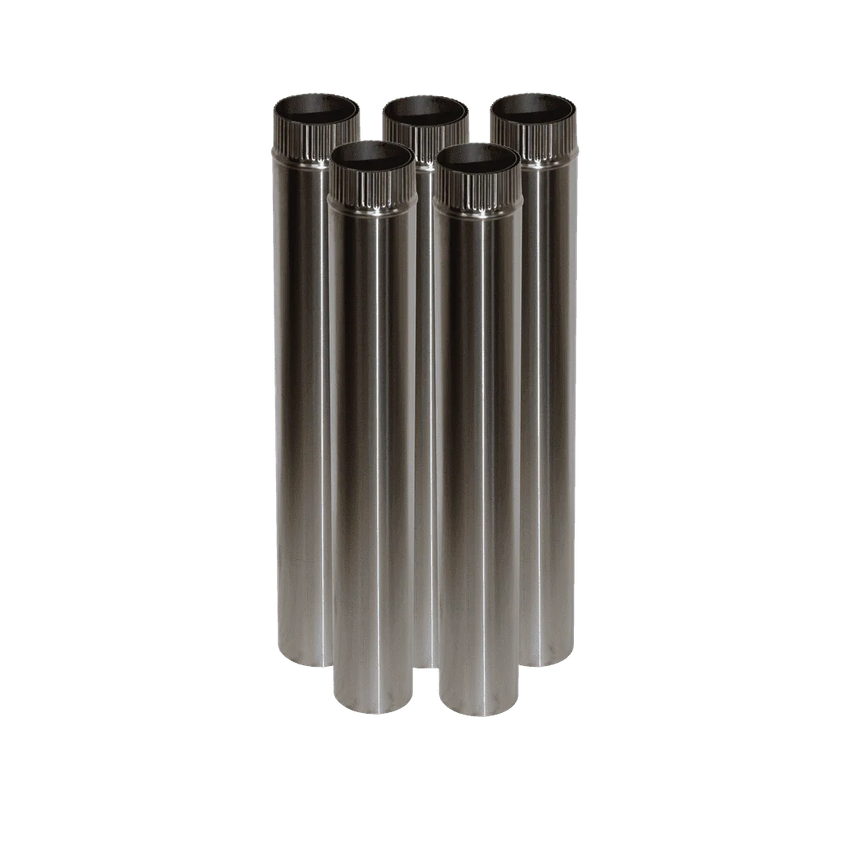

- Kit of 5: Five flues, 120 inches (304 cm), usable length 112.5" (285.75 cm).
Dimensions
- Total Length: 61 cm (24 inches) per section.

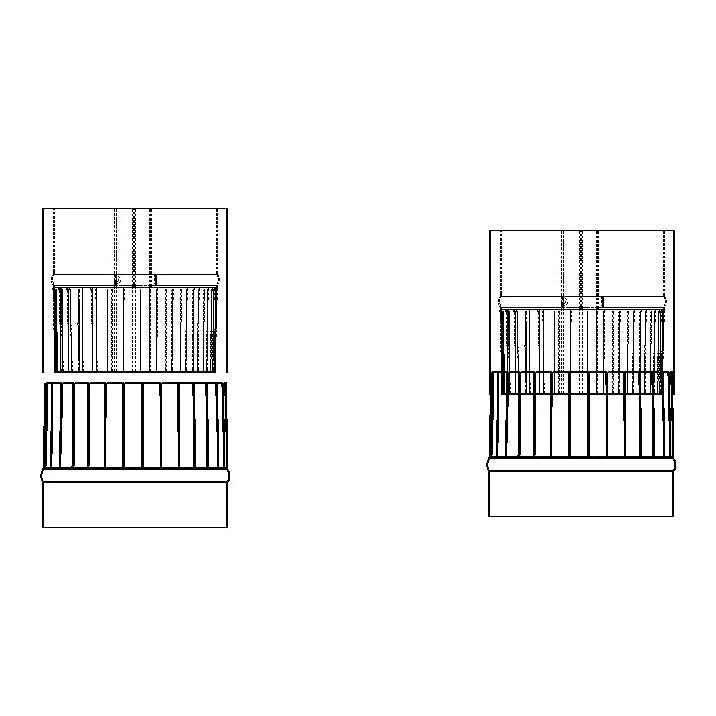

- Usable Length: 57.15 cm per section (3.81 cm loss at junction).

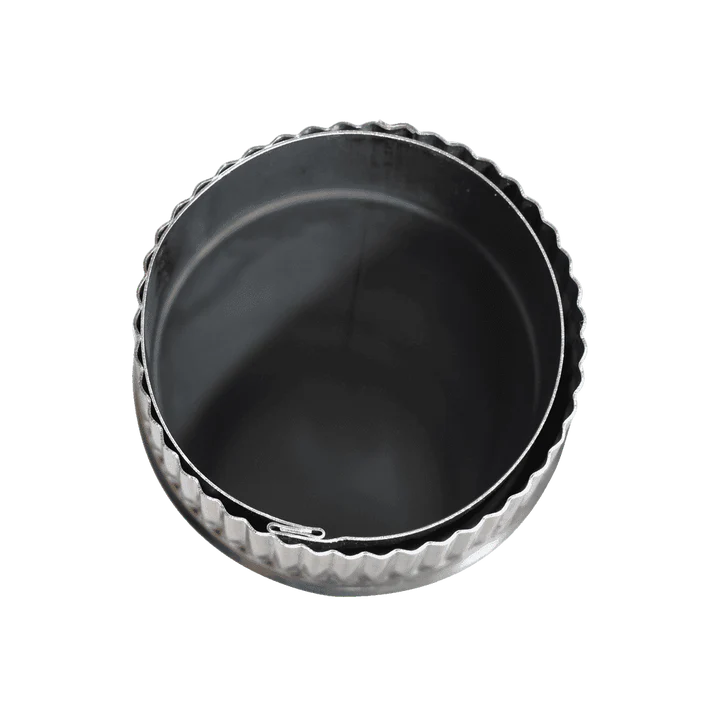

- Outer Diameter: 8.25 cm (3.25 inches).
- Inner Diameter: 7.3 cm (2.875 inches).
Materials
- Made from stainless steel inside and out.
- Corrosion-resistant for maximum durability.

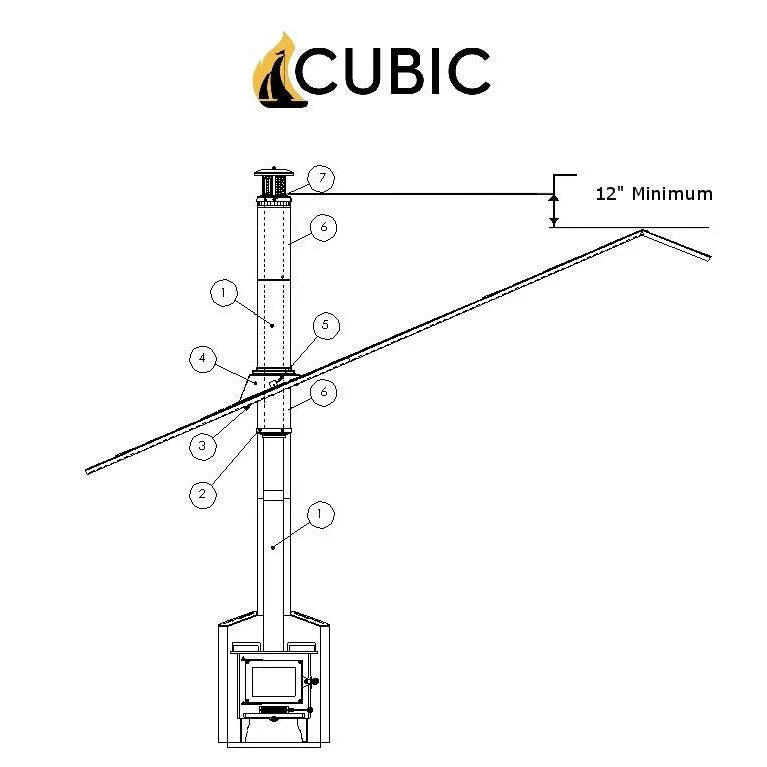

Installation for Non-Certified Installations
- Extend 3-inch flues to 30.5 cm above the roof.
- Install in vertical exit only, no elbows.
- Pair with a roof exit kit for added safety.

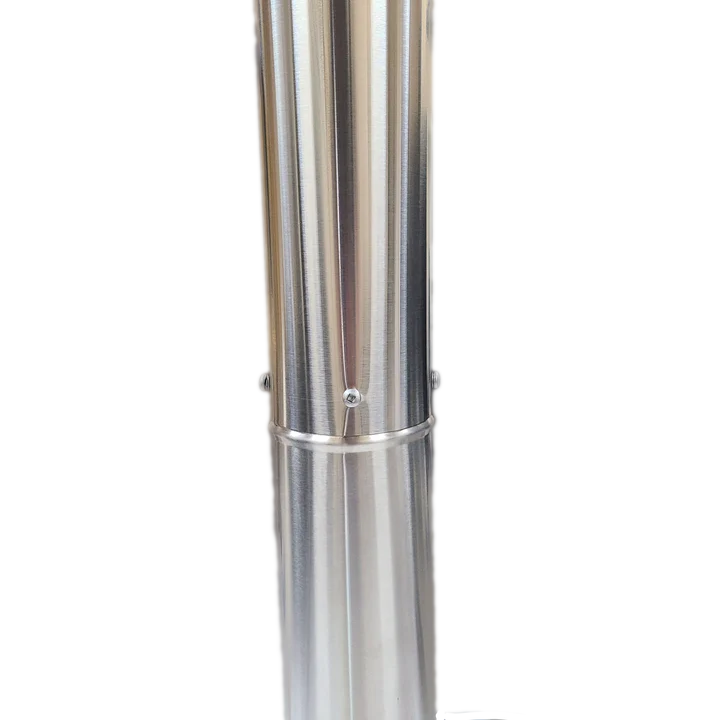

- Secure sections with self-tapping screws.
Installation for Certified Installations
- Connect to a 6-inch UL103 HT/ULC-S629 certified chimney.
- Use CB-3060 adapter cone for 3-to-6-inch transition.
- Start the 6-inch section just before the ceiling.
Safety and Maintenance
- Shielding mandatory if flue is within 23 cm of walls.
- Install with CB-2015/CB-2215 wall supports for stability.
- Never use as a pellet stove flue.
- Clean regularly with a 3-inch brush to prevent creosote buildup.
- Inspect flues weekly for optimal safety.
- Adjust length with a disc grinder if needed.
Product Description

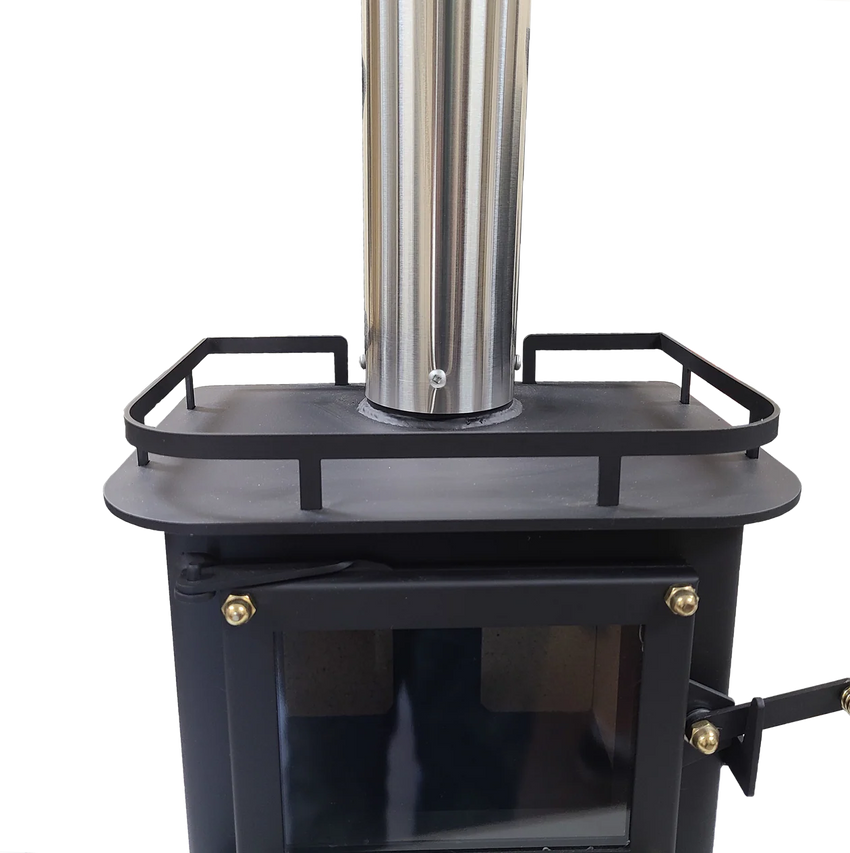

The Small Wood Stove for Cabins 3" Stainless Double Wall Flue Pipe CB-3024-SS combines durability and efficiency. Its stainless steel design ensures strong draft and cleaner combustion. Modular, it adapts to various configuration heights.
Benefits for Vans and Tiny Houses
Install this flue in a converted van for reliable evacuation. Choose the length suited to your needs, benefiting from a solution resistant to vibrations and mobile environments.
Use in Off-Grid Cabins
This Small Wood Stove for Cabins off-grid flue pipe is also ideal for isolated cabins. Weather-resistant, it can be extended by sections for taller roofs. Enjoy autonomous and durable heating.
Related Products
Complete your setup with a metal or shingled roof exit kit. Add wall supports to enhance your system’s safety.
