Mini Wood Stove 5" Stainless Insulated Pipe 12" Long
Discover this Small Wood Stove for Cabins 5" Stainless Insulated Pipe, model CB-5012-SS. Designed to effectively protect your installation, it maintains gas heat and enhances stove draft. Thus, you benefit from safer and more efficient combustion, suitable for various roof types.
Ideal for non-certified installations, this flue is compatible with Cub and Grizzly stoves. Its compact and modular length allows easy customization of your exhaust system.

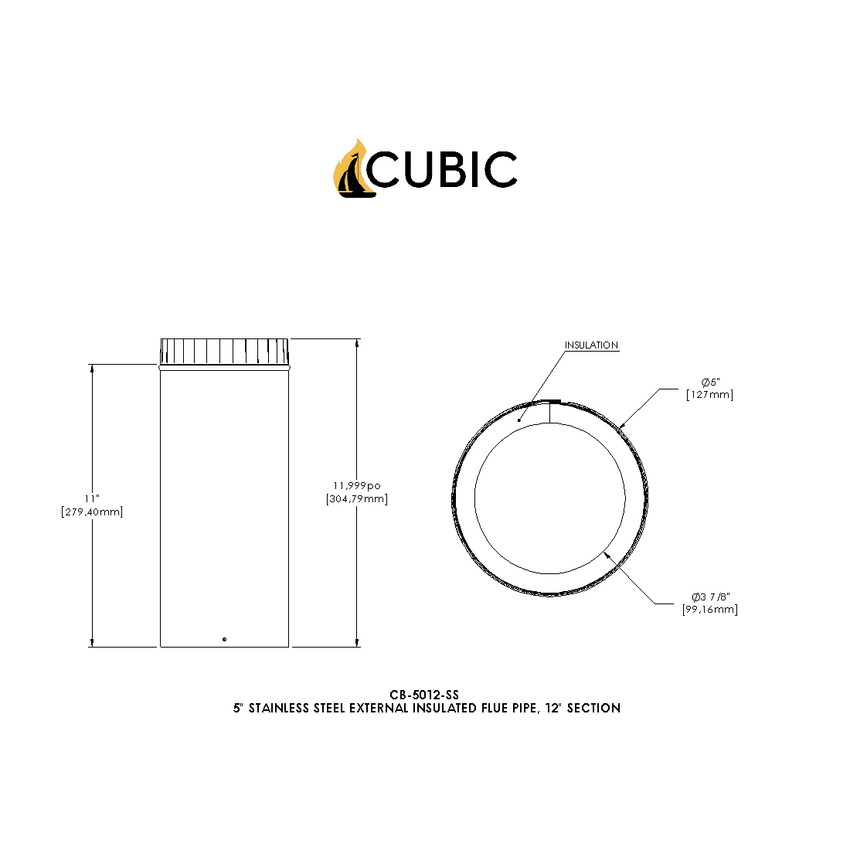

Dimensions
- Total Length: 30.48 cm (12 inches) per section.
- Usable Length: 26.6 cm per section (1.9 cm lost at connection).
- Outer Diameter: 12.7 cm (5 inches).
Materials
- Made from stainless steel for enhanced strength and durability.

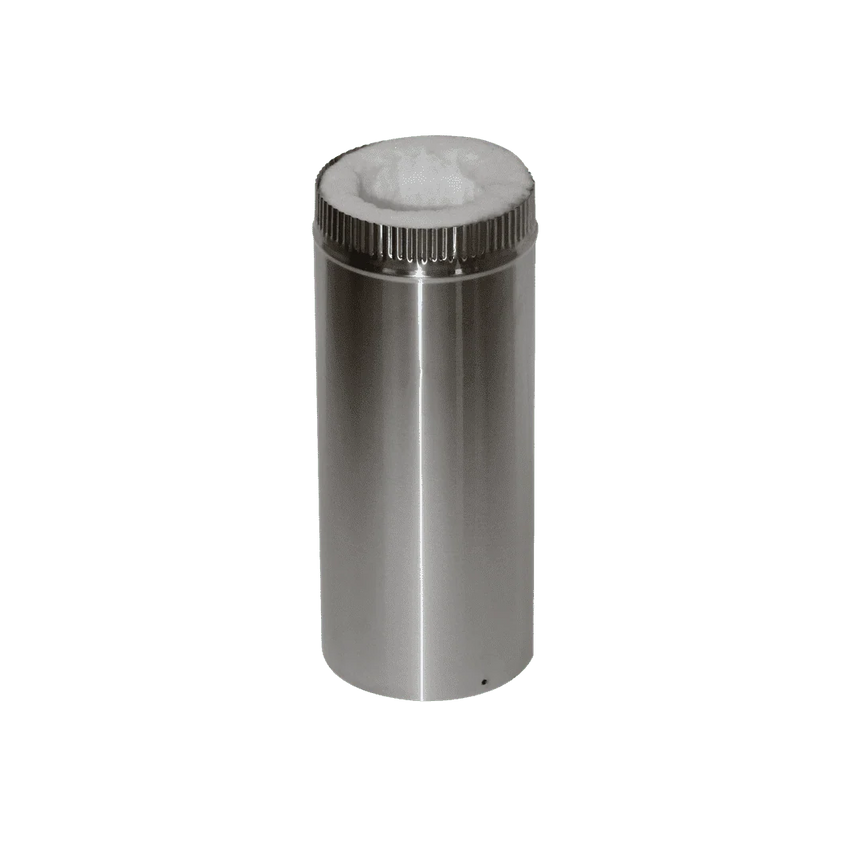

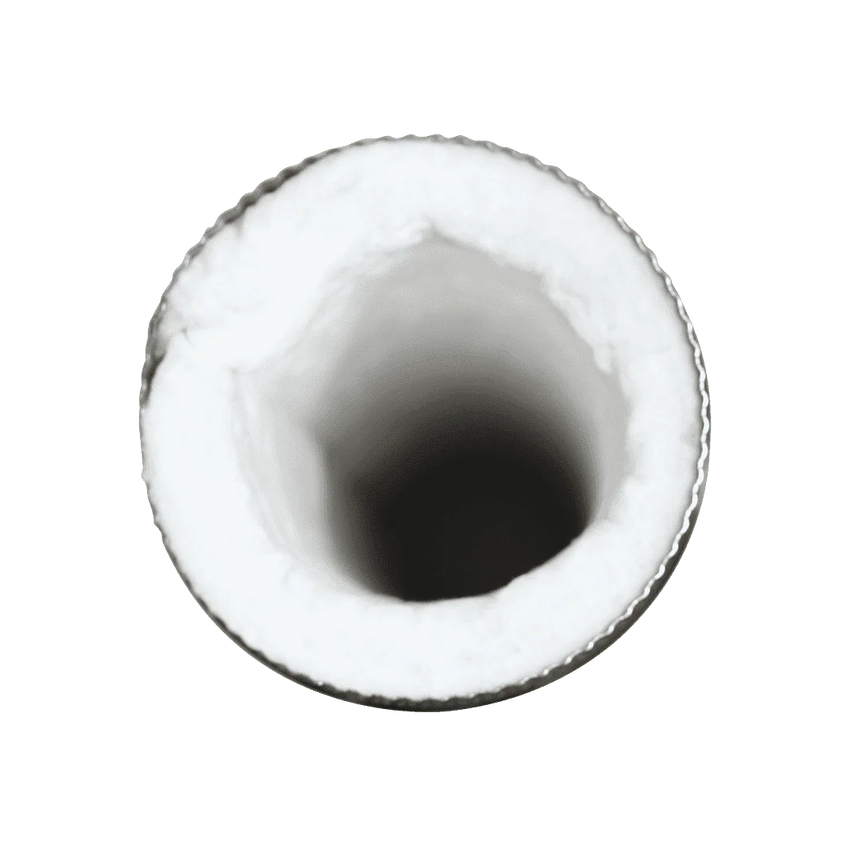

- 2.54 cm thick ceramic wool insulation.
- Resistant to corrosion and high temperatures.
Installation for Non-Certified Installations

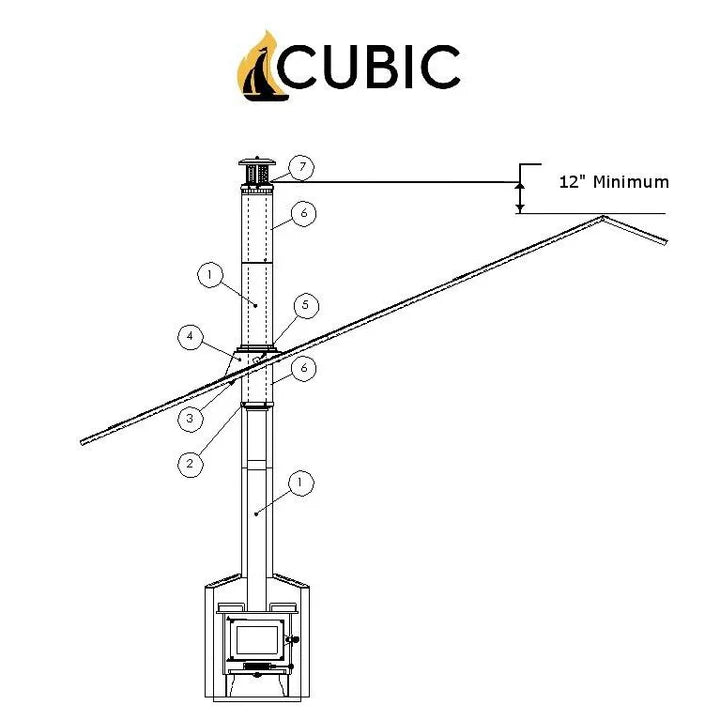

- Install starting 5 cm below the ceiling up to 30.5 cm above the roof.
- The 3-inch flue (not included) fits inside the 5-inch insulated flue.
- Maintain a 2.54 cm air gap around the flue.
- Cut a 17.8 cm circular or oval hole depending on roof slope.
- Add a support if the exterior flue exceeds 61 cm.
Compatibility
- Designed for Cub CB-1000 and Grizzly CB-2000 stoves.
- Use with 3-inch double-wall flue CB-3024-SS (sold separately).
- Reserved for non-certified installations only.
Safety and Maintenance
- Reduces surface temperature for increased safety.
- Maintains hot gases and minimizes creosote buildup.
- Adjust length with a disc grinder if necessary.
- Clean the 3-inch flue regularly with an appropriate brush.
- Inspect weekly to avoid chimney fire risks.
Additional Features
- Effective insulation to retain combustion gas heat.
- Protects ceiling and roof during pass-through.
- Easily integrates into existing exhaust systems.
- Complements 24-inch sections for customized lengths.
Product Description
The Small Wood Stove for Cabins 5" Stainless Insulated Pipe CB-5012-SS is designed to secure your installation. Its stainless steel structure with ceramic insulation reduces surface heat and improves stove efficiency. It complements 24-inch sections perfectly to adjust your setup.
Benefits for Vans and Tiny Houses
This flue is ideal for a converted van installation. It protects ceilings and roofs, reduces thermal risks, and adapts to mobile environment constraints. Heat your space safely while on the move.
Use in Off-Grid Cabins
This Small Wood Stove for Cabins off-grid insulated pipe is perfect for isolated cabins. Weather-resistant, it can be combined with other sections for taller roofs, ensuring optimal combustion. Enjoy reliable, autonomous heating.
Related Products
Complete your setup with the 3-inch double-wall flue CB-3024-SS. Add a roof exit kit to secure your entire system.
