Mini Wood Stove Metal Roof Exit Kit

Choose this Small Wood Stove for Cabins Metal Roof Exit Kit, model CB-6000-MR. Designed for efficient and safe smoke evacuation, it installs quickly and protects your roof durably. Select a 24-inch flue or two 12-inch flues based on your needs.

Tailored for non-certified installations, it is ideal for metal roofs and supports slopes up to 40 degrees. Enjoy a reliable and versatile solution.

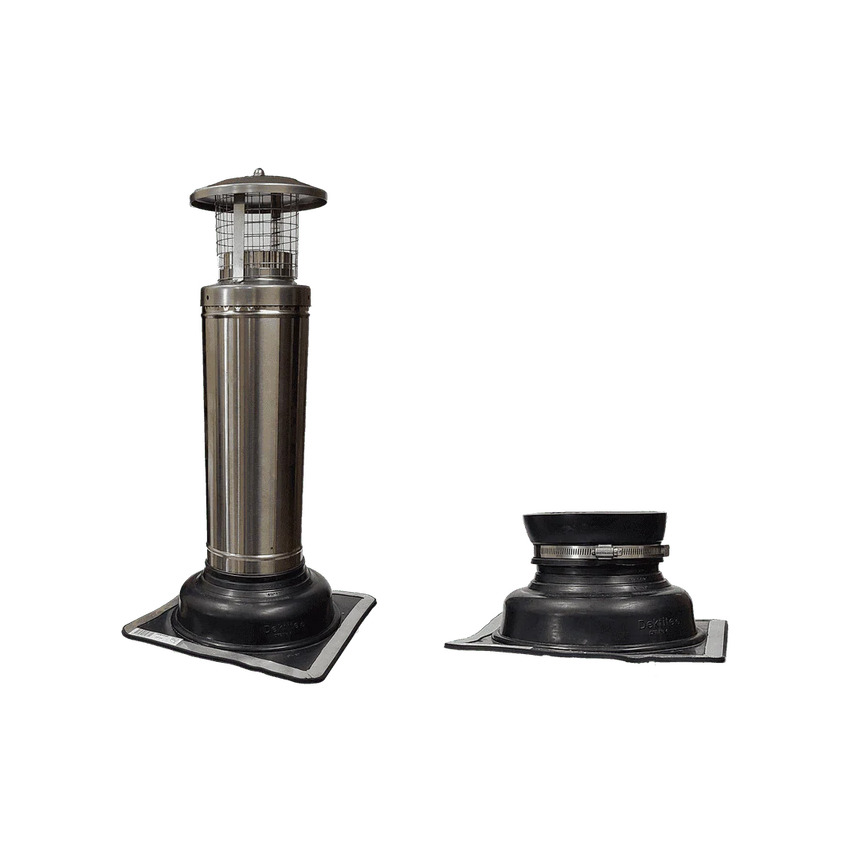

Configuration Options

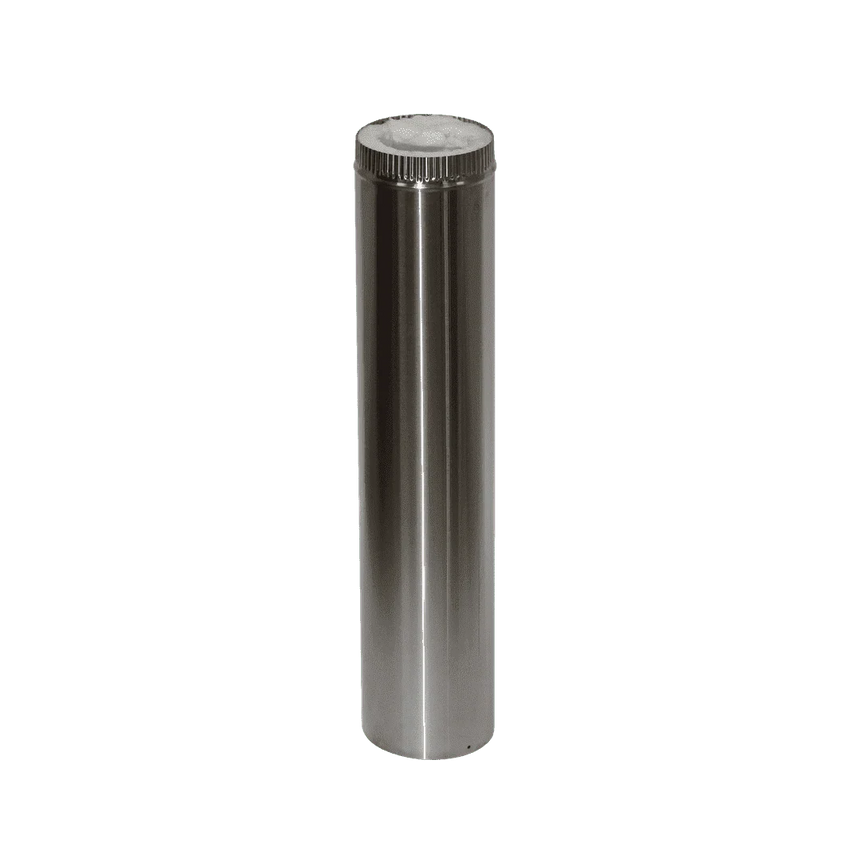

• Option 1: One 24-inch (61 cm) insulated flue for taller installations.

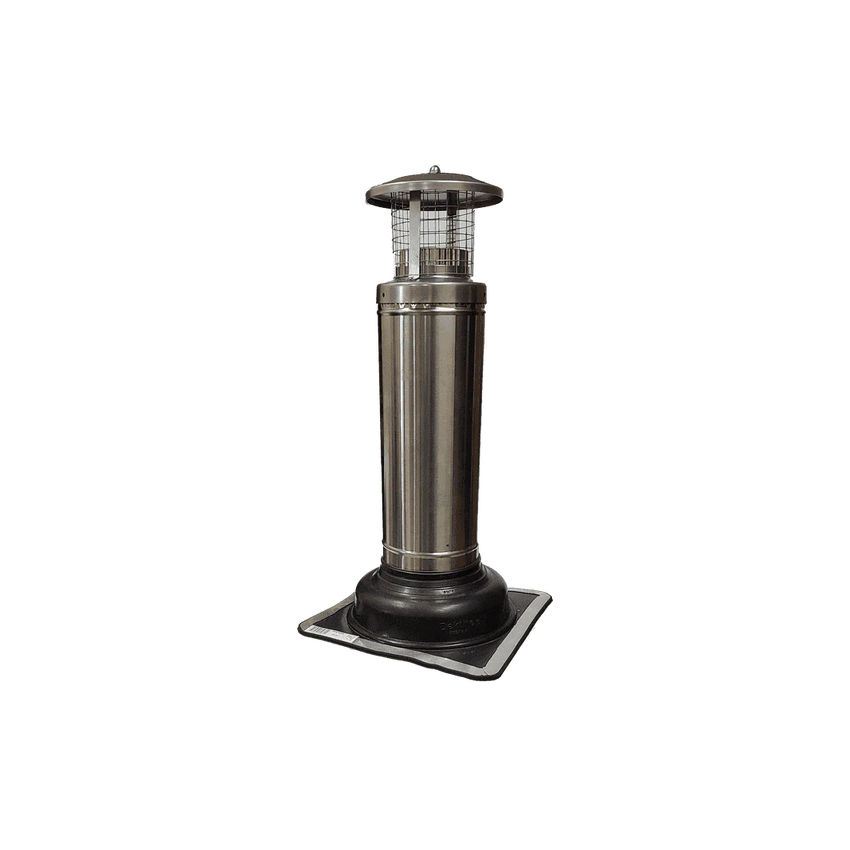

• Option 2: Two 12-inch (30.5 cm) insulated flues for a low profile.
• The two-flue version allows exterior disassembly, ideal for travel.
• Use the CB-406F30 flexible rubber cap to seal the passage during travel.

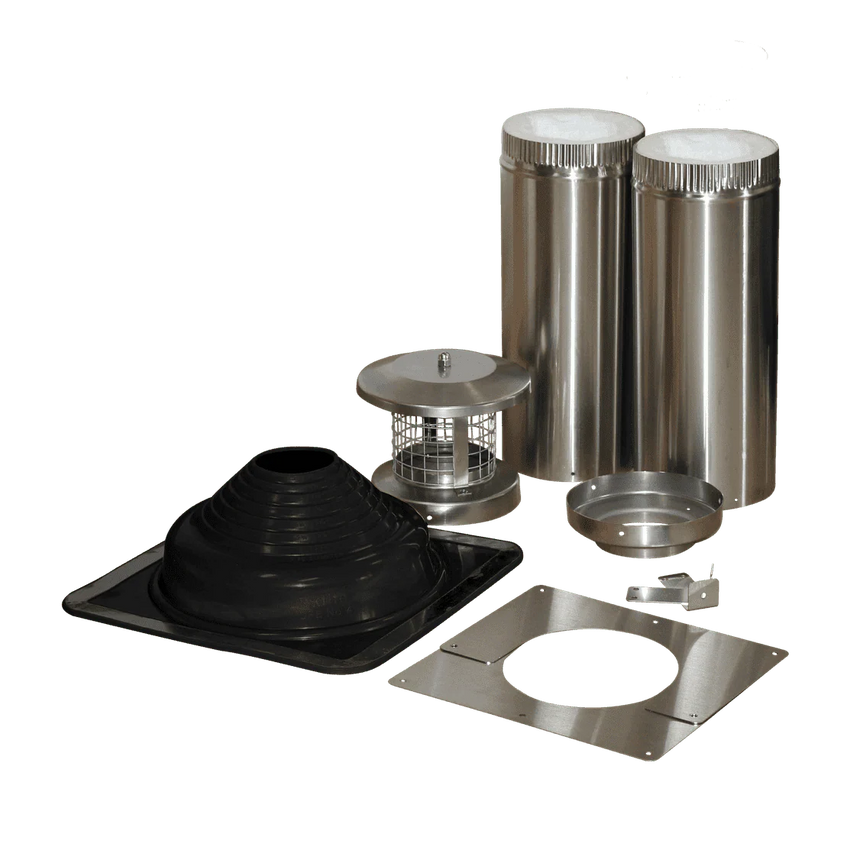

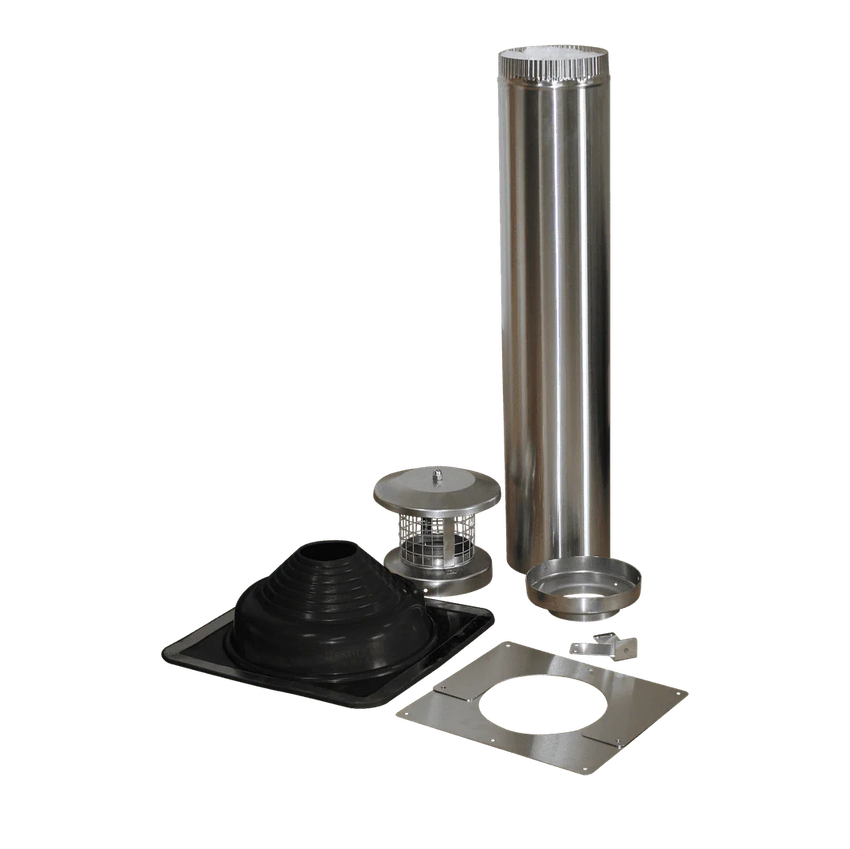

Included Components

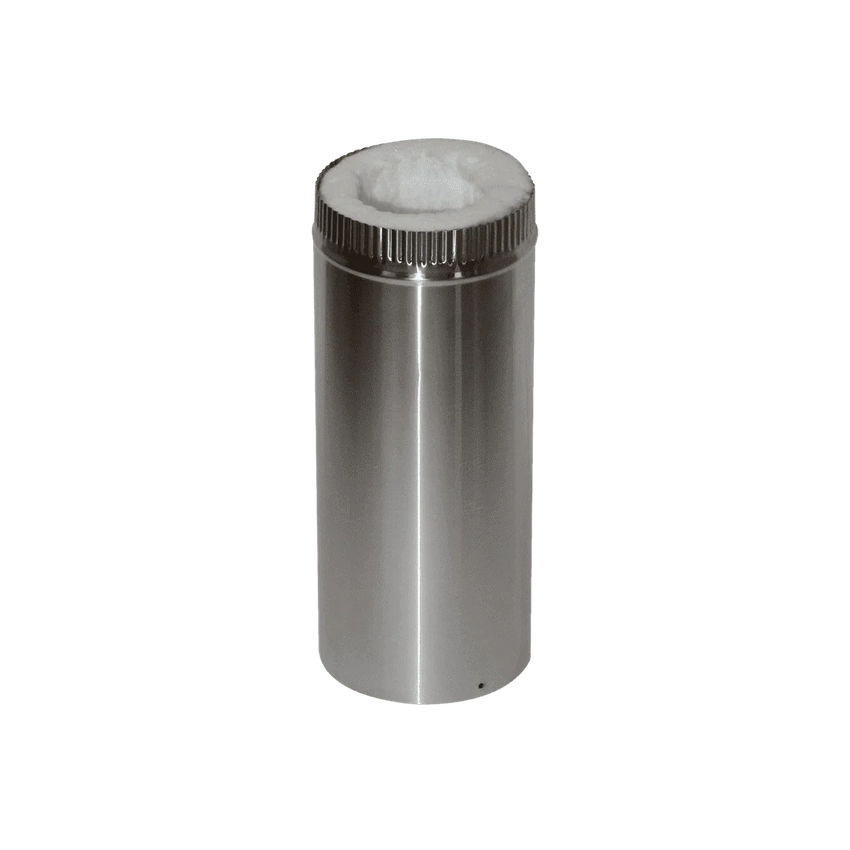

• 5-inch insulated flue: Stainless steel with ceramic wool insulation (CB-5012-SS or CB-5024-SS).

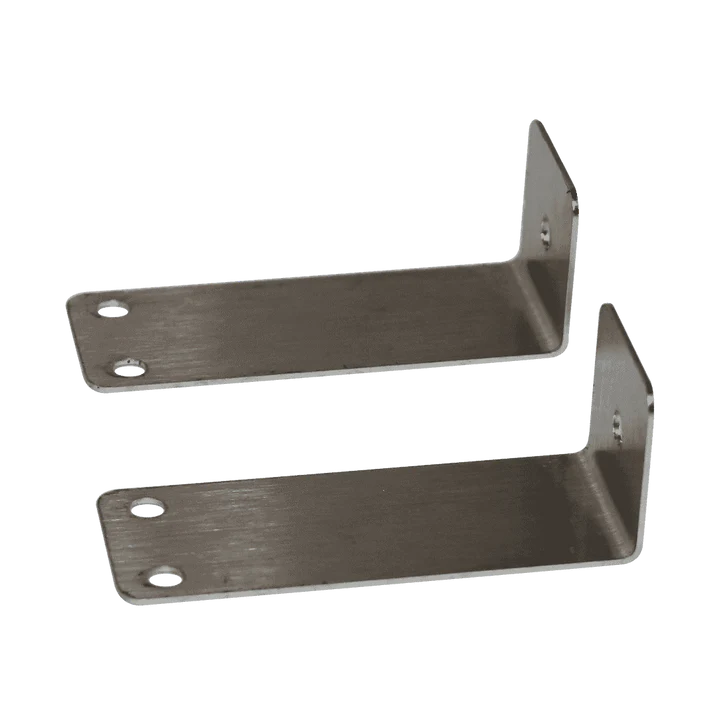

• Supports: CB-3027-SS to keep the flue centered in the opening.

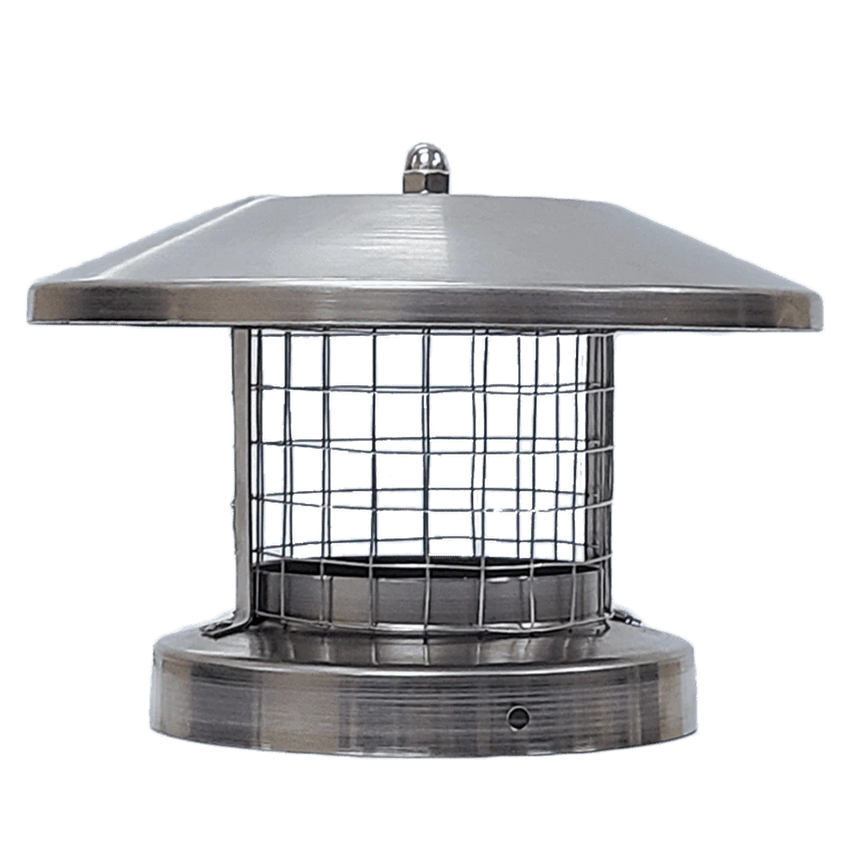

• Rain cap: CB-5028-SS stainless steel, waterproof and spark-resistant.

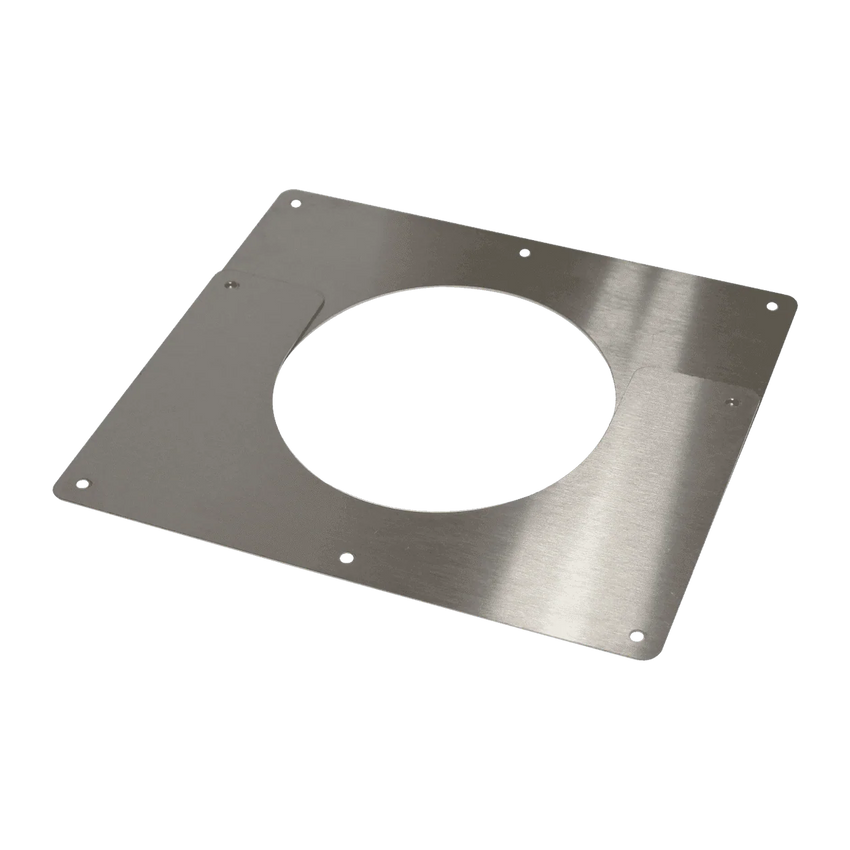

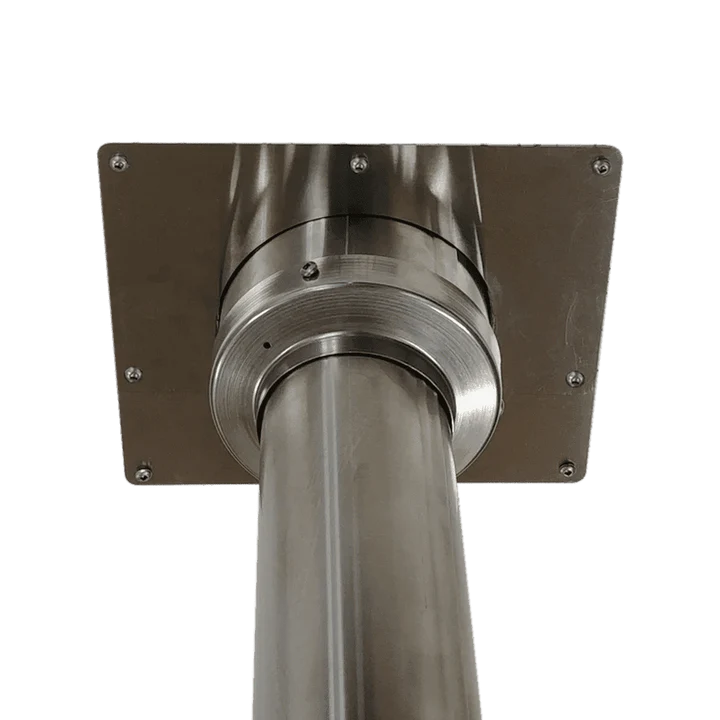

• Finish plate: CB-5029-SS, 23 cm, for clean interior gap coverage.

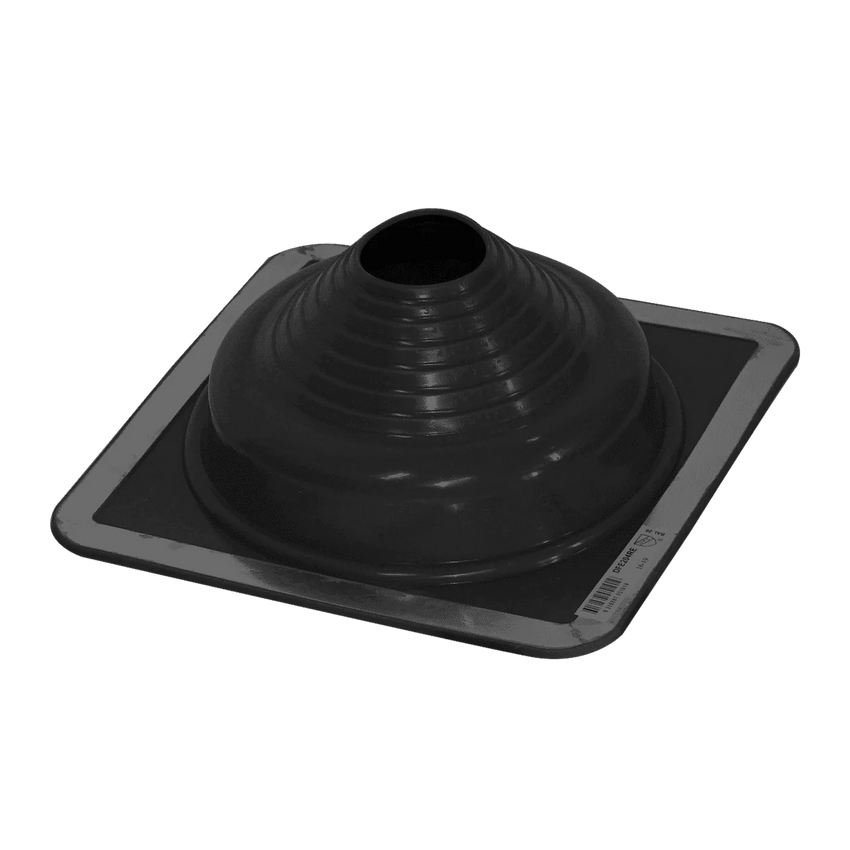

• EPDM rubber boot: 28 cm x 28 cm for a perfectly sealed joint.

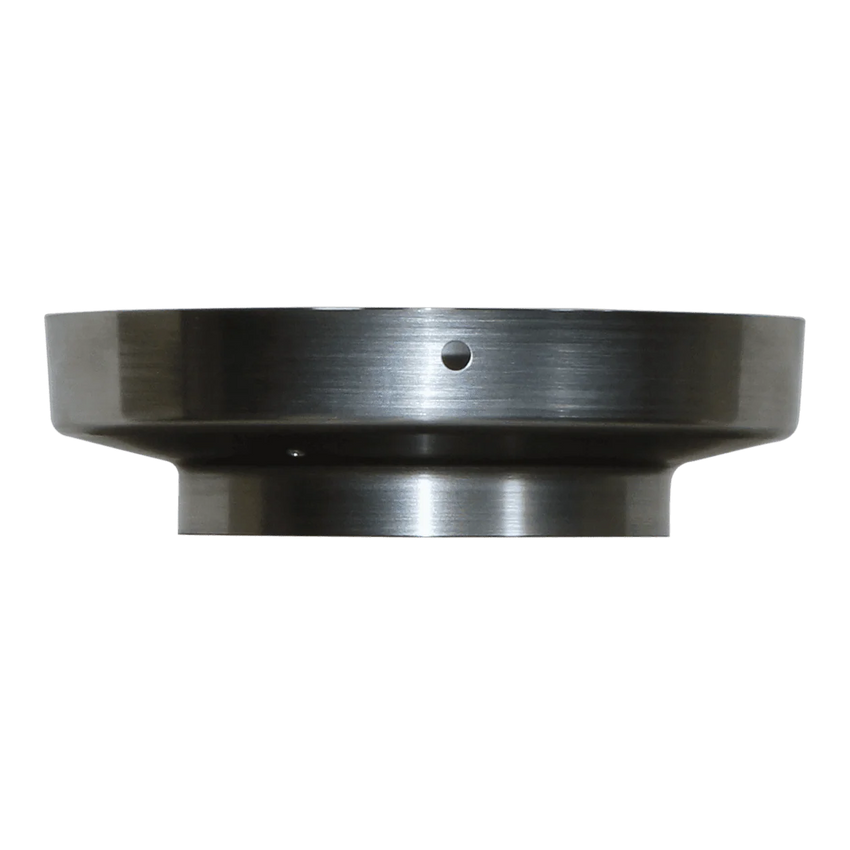

• 3-to-5-inch adapter: CB-3050-SS, 12.7 cm wide, for flue transition.

Materials and Dimensions

• 5-inch flue: 12.7 cm diameter, height options (24" or 2x12").
• Rain cap: 13.3 cm high, 15 cm top plate, 12.7 cm base.
• Finish plate: 23 cm wide, adjustable height from 20.3 to 26 cm (up to 45°).
• Supports: 2.5 cm wide, 5 cm long.
• Boot: 28 cm x 28 cm base.
• Adapter: 12.7 cm wide, 3.8 cm high.

Installation and Compatibility

• Compatible with corrugated, ribbed, or flat metal roofs.
• Suitable for roof slopes up to 40 degrees.
• 3-inch flue (not included) passes inside the 5-inch insulated flue.
• Start the 5-inch flue 5 cm below the ceiling and end 3.8 cm below the 3-inch flue.
• Add sections if more than 61 cm is needed.
• Use a support for exterior sections exceeding 61 cm.

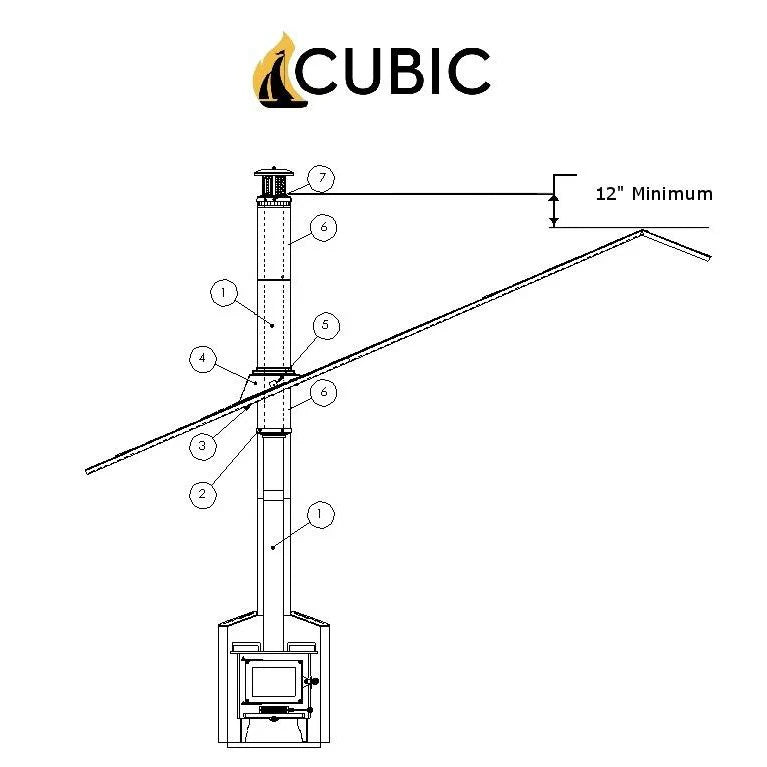

• The 3-inch flue must extend 30.5 cm above the roof’s highest point.

Included Hardware

• 24-inch option: 2 self-drilling screws 0.47 cm x 2.54 cm, 6 screws 0.31 cm x 1.27 cm.
• 2x12-inch option: 2 screws 0.47 cm x 2.54 cm, 9 screws 0.31 cm x 1.27 cm.
• Not included: Screws for plate, boot, and supports; high-temperature silicone for sealing.

Safety and Maintenance

• Designed for non-certified installations only.
• Insulated flue limits surface heat and reduces creosote buildup.
• Maintains hot gases for improved efficiency.
• Ensures a watertight seal with the EPDM boot.
• Regular cleaning recommended to prevent buildup.

Product Description

This Small Wood Stove for Cabins Metal Roof Exit Kit makes installation simple and safe. Discreet and practical, it includes all necessary components. It ensures optimal smoke evacuation while protecting against water leaks and sparks.

Benefits for Vans and Tiny Houses

Install this kit on a converted van for a secure roof exit. The 2x12-inch option minimizes exterior height, ideal for travel. It also ensures excellent sealing during movement.

Use in Off-Grid Cabins

This Small Wood Stove for Cabins off-grid kit also fits cabins with metal roofs. With high-temperature silicone, it guarantees optimal sealing against weather. Add an extra support if needed and enjoy reliable, autonomous heating.
